Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G
Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF LTE 5G Televes 534121
DTKOM series multiband amplifier for terrestrial TV consisting of 5 inputs (FM-BIII-BIV-BV-UHF) with integrated 5G LTE filter. Amplifier of high power and minimal noise figure, with front controls. Configurable gain via switch (high/low) and high output level. Switch to feed preamps or active antennas.
Of this station, the UHF band**is divided into 2 inputs. An ideal solution for TV TERR installations with two repeaters, since in this way the channels corresponding to each input are filtered and prevents them from overlapping each other.

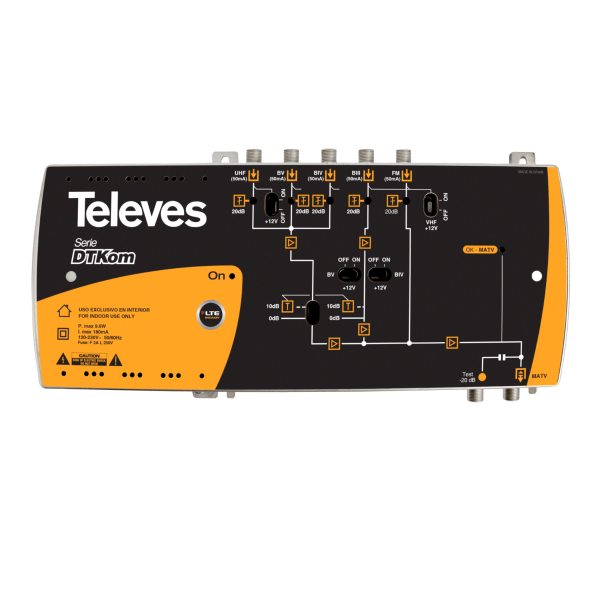

Central amplifier in a high shielding chassis, made of Zamak, with a design that facilitates cooling. It integrates a high performance and low consumption**power supply. The block diagram and possible settings are indicated on the face. Includes LED signal indicator at the output.
5-Input DTKOM Multiband Amplifier (FM-BIII-21..32-36..48-UHF) with 5G LTE
What technical specifications does the DTKOM Televes 534121 Amplifier have?
Bands UHF BV BIV BIII FM
Frequency margin MHz 470 … 694 590 … 694
(Ch36…48) 470 … 566
(Ch21…32) 174 … 370 88 … 108
Gain 0 dB 42 41(1) 41(2) 42 25
10 32 31(1) 31(2) 32 25
Gain margin (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20
Max. output level IMD3 (2 tones,-35 dB) dB?V
(dBmV) 125 (65)
DIN 45004B 123 (63)
IMD3 (2 tones,-60 dB) 120 (60)
IMD2 (2 tones,-60 dB) – – – 122 (62) –
Noise figure dB 10 10 10 5 6
Test -20
Powering inputs V= 12
Max. curent inputs mA 50
Mains voltage /frequency V~ / Hz 120 … 230 / 50-60
Total AC consumption OFF W / mA 5,8 / 120
ON W / mA 9,6 / 180
Protection level IP 20
Operating temperature range ?C (?F) -5 … +45 (23 … 113)
