Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G
Broadband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G

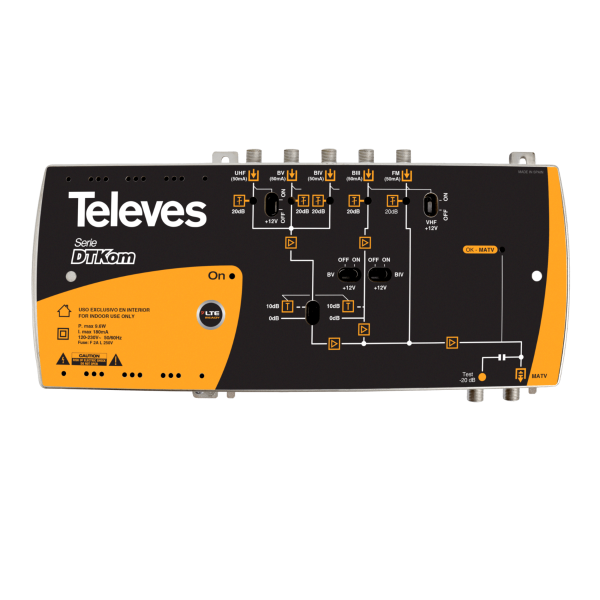

DTKOM terrestrial amplifier with 5 inputs (FM-BIII-BIV-BV-UHF) with integrated 5G LTE filter. Broadband amplifier of high power and low noise figure, with multiple front controls, with configurable gain by**switch (high/low), a switch for powering preamps or BOSS antennas, and an output signal indicator LED.
The UHF band is divided into 2 inputs, useful in TV installations with two repeaters, it already allows you to filter the channels that do not correspond to each of them.
Head-end amplifier for small collective terrestrial TV installations. Designed with a high shielding chassis, in Zamak, with good cooling. Integrated power supply of high performance and low consumption.
5-Input DTKOM Broadband Amplifier (FM-BIII-21..36-38..48-UHF) with 5G LTE
What technical specifications does the DTKOM Televes 534120 Amplifier have?
Bands UHF BV BIV BIII FM
Frequency margin MHz 470 … 694 606 … 694
(Ch38…48) 470 … 598
(Ch21…36) 174 … 370 88 … 108
Gain 0 dB 42 41(1) 41(2) 42 25
10 32 31(1) 31(2) 32 25
Gain margin (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20
Max. output level IMD3 (2 tones,-35 dB) dB?V
(dBmV) 125 (65)
DIN 45004B 123 (63)
IMD3 (2 tones,-60 dB) 120 (60)
IMD2 (2 tones,-60 dB) – – – 122 (62) –
Noise figure dB 10 10 10 5 6
Test -20
Powering inputs V= 12
Max. curent inputs mA 50
Mains voltage /frequency V~ / Hz 120 … 230 / 50-60
Total AC consumption OFF W / mA 5,8 / 120
ON W / mA 9,6 / 180
Protection level IP 20
Operating temperature range ?C (?F) -5 … +45 (23 … 113)
(1) G(Ch38)=37/27dB
(2) G(Ch36)=38/28dB
