Multiband Amplifier DTKOM FM-BIII-UHF LTE 5G Televes
Multiband Amplifier DTKOM FM-BIII-UHF LTE 5G Televes 534020
DTKOM terrestrial amplifier with 3 inputs (FM-BIII-UHF) and integrated 5G LTE filter. High power amplifier with configurable gain via switch (high/low) and high output level of 123dB**V in terrestrial. Central designed to provide a solution to small collective terrestrial TV installations.

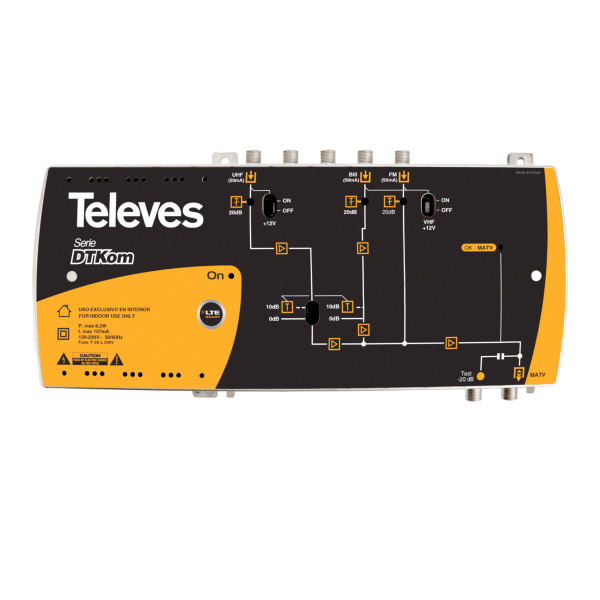

Intuitive front panel with settings and block diagram, output signal indicator LED. It incorporates a switch for DC pass to**preamplifiers or BOSS antennas. Highly shielded chassis, made of Zamak, which facilitates cooling. It integrates high performance and low consumption switching**power supply.
DTKOM FM-BIII-UHF 42dB Broadband Multiband Amplifier with 5G LTE
What technical specifications does the DTKOM Televes 534020 Amplifier have?
Bands UHF BIII FM
Frequency margin Mhz 470 … 694 174 … 370 88 … 108
Gain 0 dB 42 42 25
10 32 32 25
Gain margin (Manual)
0 … 20 (Manual)
0 … 20 (Manual)
0 … 20
Max. output level IMD3 (2 tones,-35 dB) dB?V (dBmV) 125 (65)
DIN 45004B 123 (63)
IMD3 (2 tones,-60 dB) 120 (60)
IMD2 (2 tones,-60 dB) – 122 (62) –
Noise figure dB 5 5 6
Test -20
Powering inputs V= 12
Max. current inputs mA 50
Mains voltage / frequency V~ / Hz 120 … 230 / 50-60
Total AC consumption OFF W / mA 5,8 / 120
ON W / mA 8,2 / 157
Protection level IP 20
Operating temperature range ?C (?F) -5 … +45 (23 … 113)
