48 Fibers Cable Singlemode Indoor/Outdoor by Meter
48 Fibers Singlemode Indoor/Outdoor LSFH Televes 231714 by Meter

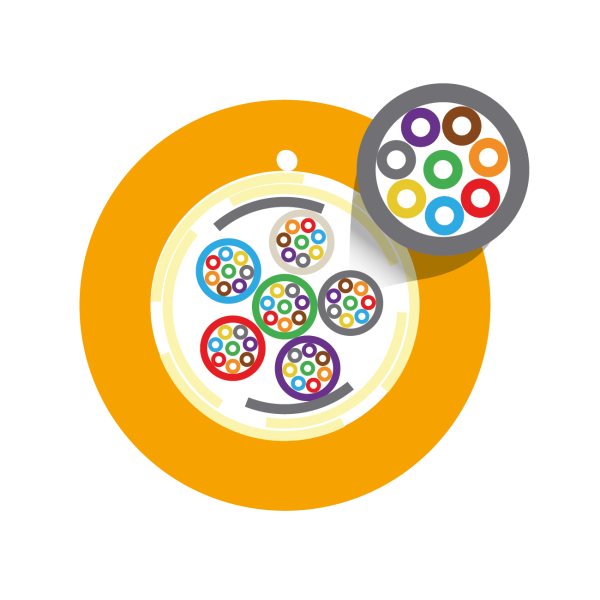

48 single-mode multi-fiber cable for indoor and outdoor installation, divided into 6 micromodules of**8 fibers, each with a UV resistant LSFH cover and with different colors.
This cable stands out for being Euroclass Dca, low attenuation fiber, micromodules with water-blocking gel and structure reinforcement with aramid (kevlar) fibers, which allows the cable to maintain its traction without the need for a central resistance element.
The cable is made of fiber type 9/125, ITU-T G.657A2. Fiber coating diameter of 250**m. Includes tear thread to open the outer cover easily.
It is supplied in coils to measure (by meter), which will be ordered from the factory, so the delivery time may vary.
48 single-mode multi-fiber cable with LSFH sheath for indoor and outdoor, supplied by meter.
What are the main characteristics of Televes 231714 48-fiber cable?
Dca-s2,d2,a1 Euroclass
Low attenuation
Organized in fibre micro-modules
Blocking jelly, offering great protection against water
Good structure reinforcement using aramid fibers (kevlar), which allows to maintain its traction without the need for a central guiding wire for resistance
9/125, ITU-T G.657A2 fibre type
Coating diameter adapted to the fibre: 250 ?m
Ripcord to open the outer sheath
UV-resistant LSFH sheath, orange colour
What technical specifications does the Televes 231714 48-fiber cable have?
Cable type Indoor/Outdoor
Fibre type 9/125 (G657A2)
Number of fibres 48
Attenuation 1310nm dB/Km ?0,35
1550nm ?0,21
Micro-modules Material LSFH (Low Smoke Free Halogen)
Filler Water blocking petrol-jelly
Diameter mm 1,1 ?0,1
Outer sheath Material UV-resistant LSFH (Low Smoke Free Halogen)
Color Orange
Diameter mm 7,6 ?0,4
Min. bending radius mm 76
Short tension N 1000
Short crush N/100mm 1000
Operating temperature ?C -5 … 60
