Multimode Fiber Optic Patch Cord 3mm Duplex SC/PC LSFH 2m
Duplex Multimode Fiber Optic Patch Cord and Length 2m 230930
This fiber optic cable allows the transmission of an optical signal from one device to another separated from each other by a distance of 2 meters.
This fiber optic pigtail is used to connect one end via SC/PC connector and the other end SC/PC connector. Its cover is halogen-free LSFH, suitable for interiors.

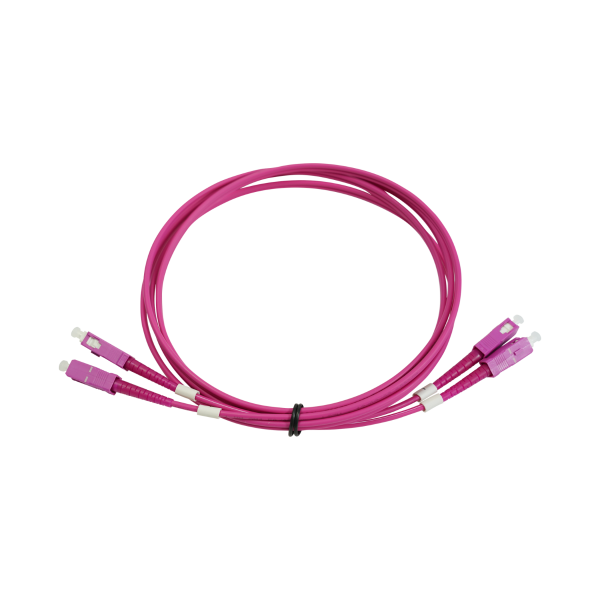

This patch cord is multimode and duplex with a pink cable, it is halogen-free.
Technical Specifications of the Duplex Multimode Fiber Optic Patch Cord and Length 2m 230930
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM4
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Insertion losses in connector 2 dB < 0.3
Return losses in connector 1 dB > 30
Return losses in connector 2 dB > 30
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? PC
Optical connector type 2 ? SC
Polishing type (Optical connector 2) ? PC
Structure reinforcement element ? Aramid fibers
Minimum bending radius mm 45
Operating temperature ?C -20 … 70
