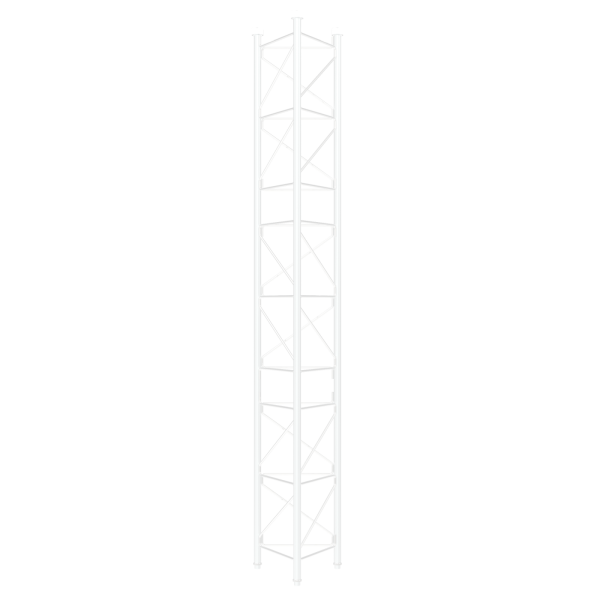

Tower intermediate section 450 G.C. White 3m
Intermediate section tower 313103 in White 3m
3-meter intermediate section of Televes Tower 450, Hot-Dip Galvanized for durability in adverse corrosion conditions with anchors system through fittings, with high strength robotic welding.
Tower 450 has a maximum height expandable up to 90 meters.
What are the main features of the intermediate section 313103 of Televes?
Anchoring system with union nuts
Fully automated soldering
450 tower maximum height: 90m (as per calculation conditions)
The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
Colour paint, oven-lacquering with polyester electrostatic powder
Surface facing the wind 0,473 m2 x 1,2 coef. = 0,568 m2
