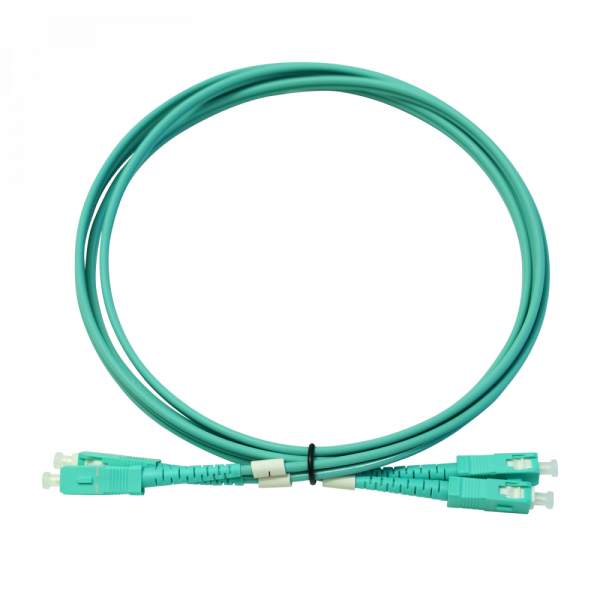

Multimode Fiber Optic Patch Cord OM3 3mm Duplex SC/PC LSFH 2m
OM3 Multimode patch cord with Duplex SC/PC connector from Televes
This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.
This fiber optic patch cord has an SC/PC connector at each end. Its 3mm cover is LSFH halogen-free, suitable for indoors.
This cable comes in aqua blue, the cable type is multimode OM3 ITU-T G.651.1.
Technical Specifications of the OM3 Multimode Patch Cord with Duplex SC/PC connector from Televes
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM3
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Insertion losses in connector 2 dB < 0.3
Return losses in connector 1 dB > 30
Return losses in connector 2 dB > 30
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? PC
Optical connector type 2 ? SC
Polishing type (Optical connector 2) ? PC
Structure reinforcement element ? Aramid fibers
Minimum bending radius mm 45
Operating temperature ?C -20 … 70
