Multiplexer / Demultiplexer Gpon with 2 optical inputs 234701 from Televes
Gpon multiplexer with two Televes optical inputs

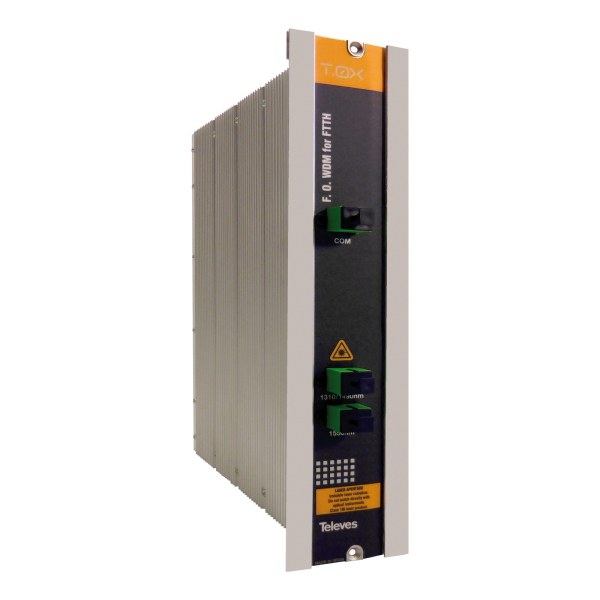

The Televes 234701 multiplexer is a passive device that multiplexes / demultiplexes two optical inputs, one of 1310 / 1490nm (GPON) and another of 1550nm (RF overlay).
This multiplexer has application in G / EPON networks.
Its chassis in T.0X format offers a rack installation for fiber optic headers.
The Televes 234701 multiplexer is a passive multiplexer with two optical inputs.
What technical characteristics does multiplexer 234701 have?
Passive device that multiplexes / demultiplexes two optical inputs:
1310 / 1490nm (GPON)
1550nm (RF overlay).
It has application in G / EPON networks.
Its chassis in T.0X format offers a rack installation for fiber optic headers
Low insertion losses
SC / APC connectors
What technical specifications does multiplexer 234701 have?
Technical specifications
Features Optical Channel
Wavelengths nm 1270 … 1350
1475 … 1505 1540 … 1565
Losses Insertion (?) 1310/1490 nm dB 0.5> 25
1610 nm dB — —
1550 nm dB> 15 0.7
Optical power max. dBm +17 +22
General Optical Characteristics
Return losses dB> 50
Directivity dB> 50
PDL dB <0.1
PMD ps <0.1
Type SC / APC optical connectors
General characteristics
Operating temperature ?C -5 ... +45
IP Protection Index 20
