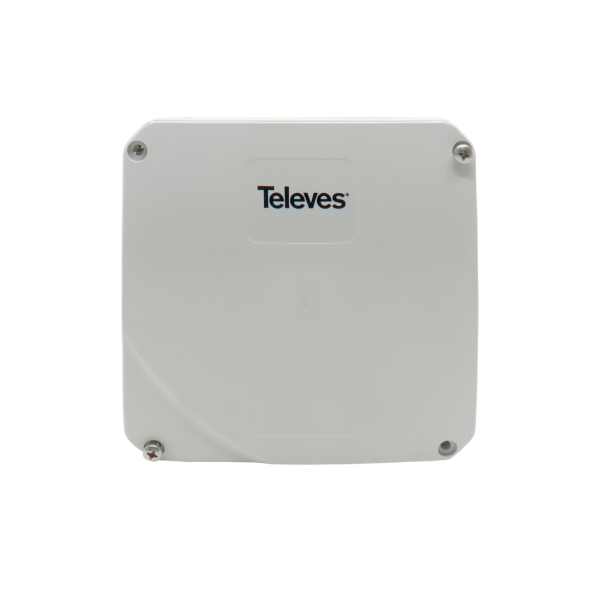

Ultra-compact Fiber Optic Secondary Register (12 fibers) 231304
Televes Ultra-compact Interior Secondary Registration 231304
This secondary register is used in fiber optic installations, to house said fibers inside and to be a distribution point. It is a passage and derivation element between the fiber optic cables.
Inside, up to 12 fusions can be made, but it is capable of expanding up to 24 fusions, if the expansion frame is used (since the frame includes a second tray).
Each tray is removable and independent, so we can easily manipulate them outside the registry, making it much easier to install the fusions.
The register has a very small size, with dimensions of 136x136x45mm. In the case of using the extension frame the dimensions will only increase a little (136x136x62 mm). It is made of high strength ABS material.
Technical Specifications of the Televes 231304 Ultra-compact Interior Secondary Register
Brand: Televes
Reference: 231304
EAN13: 8424450266878
Colour: Gray RAL 7035
Number of fibers: up to 12 fibers
Material: ABS
Dimensions: 136 x 136 46mm
