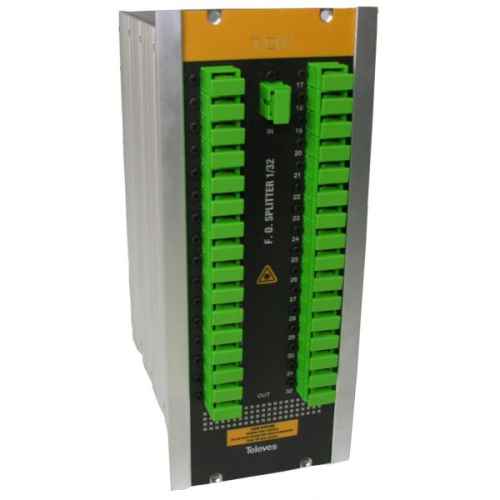

Optical deliveryman 1310 / 1550nm SC / APC 32D 17dB
Repartidor **ptico 1310/1550nm SC/APC 32D 17dB de Televes. Ref. 234601
32 deliveryman outlets for fiber optic installations , for connections 1310/1550 nm .
Characteristics:
32 outputs .
Wavelength of 1310-1550 nm .
Connector SC / APC type .
Insertion loss of 17.5 dB.
Return loss of 55 dB.
IP20 protection index .
Dimensions 73x216x175 mm .
