Optical Transmitter DTT-Satellite 1310nm SC/APC 3dbm

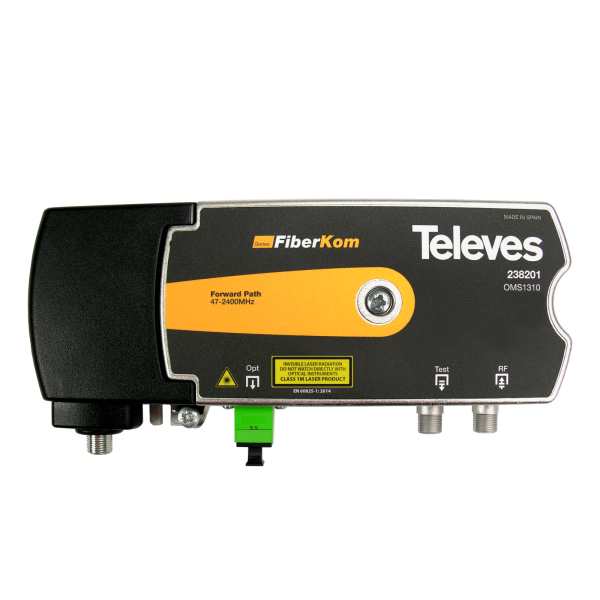

FiberKom Televes 238201 Optical Transmitter
This Televes transmitter generates an optical signal at 1310nm and with 3dBm power from a terrestrial and satellite RF signal (47-2400 MHz).
Simple “Plug & Play” wall-mount installation, with type F input and SC / APC output. SMATV compatible: bandwidth up to 2400 MHz.
Optical level indicator by green LED. Power supply via coaxial connector, with supply voltage up to 35V.
FiberKom Televes SC/APC optical transmitter in 1310nm for DTT and Satellite.
What are the main features of Televes FiberKom 238201 optical transmitter?
SMATV-compatible: up to 2400 MHz input bandwidth
“Plug & Play” installation
FiberKom design: made of Zamak, provides great robustness and shielding. The design also offers a wall assembly for separately installation.
OMI Test Point
Optical level indicator with green LED
Coaxial power supply connector, with a maximum voltage of 35V
SC/APC optical connectors, and F-type connectors for RF
What technical specifications does the Televes FiberKom 238201 optical transmitter have?
RF Frequency range MHz 47 – 2400
Flatness 47-1200 MHz dB ?0.75
950-2400 MHz ?2.5
Input level 47-1200 MHz dB?V 79
950-2400 MHz 95
C/N dB >51
CSO dB >60
CTB dB >65
OMI Test point dB?V ?64
Optical Optical connector type SP / APC
Laser type MQW – DFB
Wavelength nm 1310
Output power dBm +3
General RF connector type F-female
Power supply connector F-female
Power supply voltage V / mA 11-35 / 120-40
Operating temperature ?C -5 … +45
Index operation IP 30
