Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC – SC/UPC 0.4m
Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC – SC/UPC 0.4m from Televes Ref. 232625

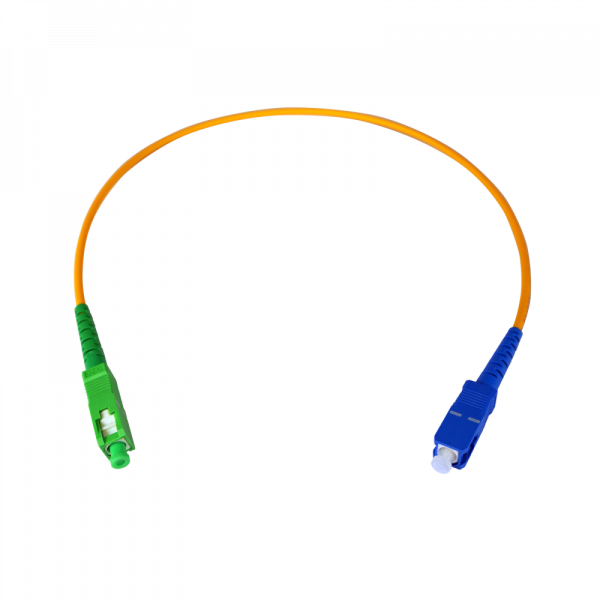

Single-mode fiber optic patch cord, with a 3mm thick section and 40cm length. The cable comes with two pre-connected connectors, so no specific tool is necessary.
One end has SC/APC connector and the other end has SC/UPC. The cable has low losses. It includes aramid fibers to reinforce its structure.
Its cover is orange and it is halogen-free (LSFH).
Technical Specifications of the Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC – SC/UPC 0.4m
What technical characteristics does the Televes 232526 hose have?
euroclass ? Dca
Euroclass: Emission of opaque smoke ? s2
Euroclass: Fall of ignited particles ? d2
Euroclass: Acidity ? a1
fiber type ? Monomode (ITU-T-G.657A2)
Fiber Type Category ? OS1
Fiber core diameter ?m 9
Fiber Cladding Diameter ?m 125
Fiber coating diameter ?m 250
cable structure ? Ajustado
Fiber structure diameter mm 0,85
Outer Cover Diameter mm 3
Outer sheath material ? LSFH
blocking gel ? No
Attenuation 1310nm dB/km < 0,8
Attenuation 1490nm dB/km < 0,8
Attenuation 1550nm dB/km < 0,8
Connector 1 Insertion Loss dB < 0,5
Connector 2 Insertion Loss dB < 0,5
Return loss in connector 1 dB > 60
Return loss in connector 2 dB > 50
Optical connector type 1 ? SC
Polished Type (Optical Connector 1) ? APC
Optical connector type 2 ? SC
Polished Type (Optical Connector 2) ? UPC
Traction in installation N 450
permanent traction N 200
Traction protection element ? aramid fibers
crushing on installation (@100mm) N 500
permanent crush (@100mm) N 100
minimum bend radius mm 15
Operating temperature ?C -20 … 70
