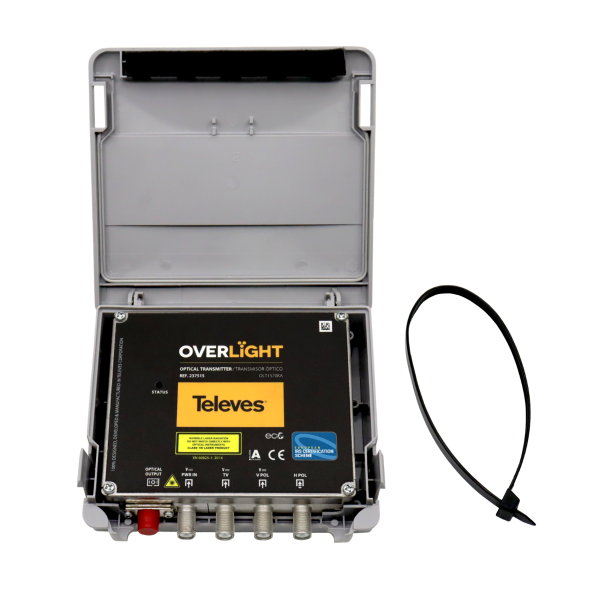

Outdoor Overlight Optical Transmitter FC/APC 1570nm/9dBm Televes
Outdoor Overligth Series Optical Transmitter 1570nm 9dBm CWDM DAB/UHF/SAT
The Overlight series is characterized by being a series of satellite and terrestrial distribution over fiber optics. Therefore, you will be able to group all the services in a single optical fiber, achieving installations with fewer antennas and devices in the installation, making the installer’s job much easier.
The transmitter will receive the signal from the LNB, both satellite and terrestrial, and will send it through a single fiber with an FC/APC connector, being able to distribute it to up to 64 users.
Its optimized electronic design gives this transmitter an output optical power of 9dBm with a wavelength of 1570nm.
It allows amplification, it is capable of preserving the quality of the signal from the beginning to the end, thanks to its low losses and its optimized electronic behavior.
Technical Specifications of the Outdoor Optical Transmitter Overlight Series 1570nm 9dBm CWDM DAB/UHF/SAT
?
Inputs/Bands ?
TERR V H
Frequency range MHz
47 … 694 290 … 2340 290 … 2340
Input level dB?V
83 … 95 70 … 85 70 … 85
Powering per inputs Vdc
11.7 … 17.7 11.7 … 17.7 —
Max. current mA
500 500 —
Max. current pass total inputs mA 720
Impedance ? 75
Laser ? MQW-DFB uncooled
Wavelength nm 1570
Optical output power dBm 9
RF connectors ? “F” female
Optical connectors ? FC/APC
Powering Vdc 12 … 18
Max. power consumption W 5.6
Current consumption mA < 430
Operating temperature ?C -5 ... 45
PSU input voltage Vac 100 ... 240
Max PSU current input mA 600
PSU output voltage Vdc 12
Max PSU output current A 1.5
