Pack of 5 DAB Televes Antennas
KSh61,928.00
Pack of 5 terrestrial antennas of 3 elements, for VHF band III and DAB. 190-232 MHz. 3. Gain 8dB. Televes 105001
Pack of 5 terrestrial antennas of 3 elements, for VHF band III and DAB.
Features

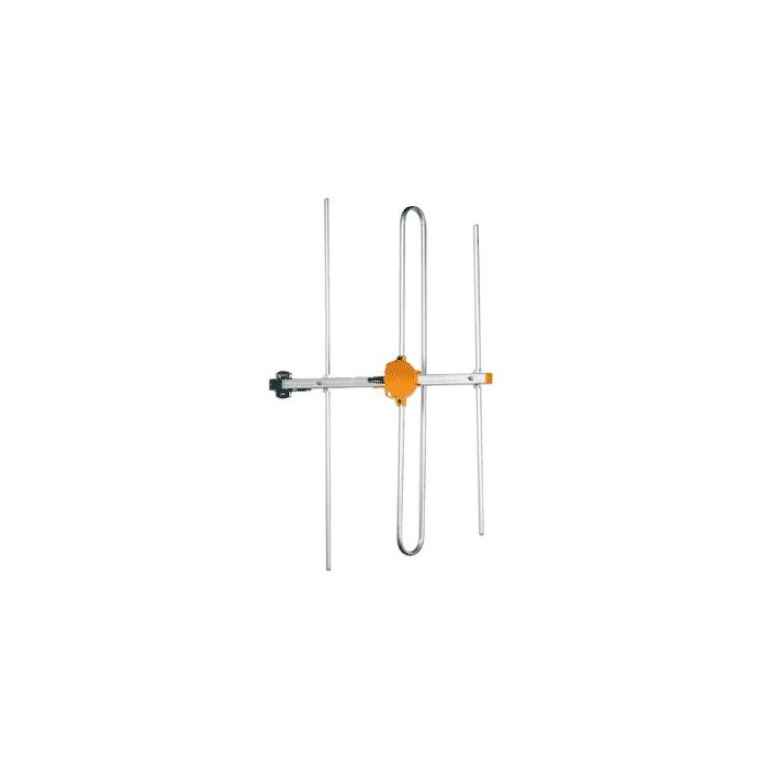

Composed of three elements (reflector, dipole and director element), it completely covers the band reserved for DAB transmissions.
Balun integrated in the connection box (connector F).
Made of aluminum (stainless).
Antenna specially designed for the reception of digital radio signals DAB (Digital Audio Broadcasting).
DAB / BIII channels 190-232 MHz.
8 dB of profit.
It incorporates an impedance adapter in its connection box.
Specifications
Reference 105001
?Operating band Ch. ?DAB/BIII
?Gain dBi ?8
?Front-to-Back ratio dB >15
?Length mm 555
?Wind load ?800N/m? N 36.5
?1100N/m? 50.2
?Antenna height m ? 20 >20
?Wind speed Km/h 130 150
?Wind pressure N/m2 800 1100
