PAU Distributor 5 Outputs Connector F10 dB Televes

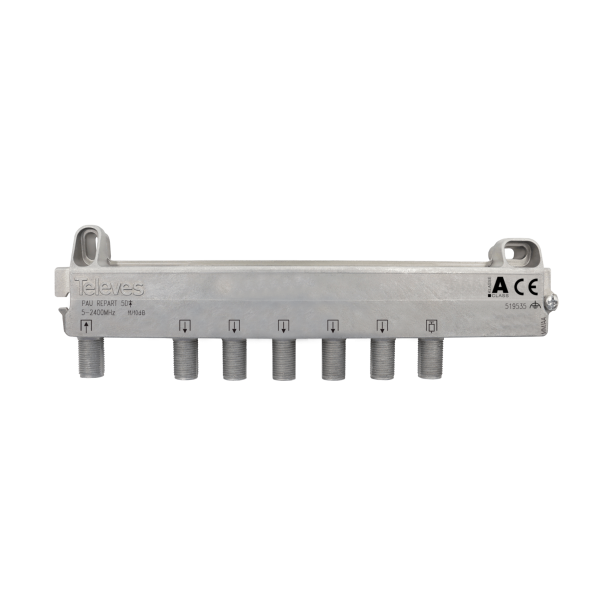

PAU Distributor of 5 Outputs 519535 of Televes
This indoor installation splitter has 5 outputs with F connectors, suitable for SMATV signals. It has good shielding and improves through losses.
As it comes with PAU, it offers an additional 75 Ohms charged input for the connection of the second downspout. This user access point for distribution is used in collective ICT-2 installations.
Includes grounding screw and DC step from the output to the input. It can also be installed outdoors, as long as we put it inside a box (TEL4177).
The splitter has a 10dB attenuation at 690 MHz. It can be installed on a wall, rack or assembled on a DIN rail. Its armored casing is made of zamak provides great shielding.
Technical Specifications of the Televes 519535 5-Output Distributor PAU
?
Frequency range
MHz
5 … 2400
Number of outputs
?
5
Inputs/Bands
?
TERR
SAT
Passage losses
dB
11
10
Rejection between departures
dB
> 20
> 20
Connectors
?
“F” female
Max Voltage
V
24
Max current
mA
350
DC Step
?
out?In
?
