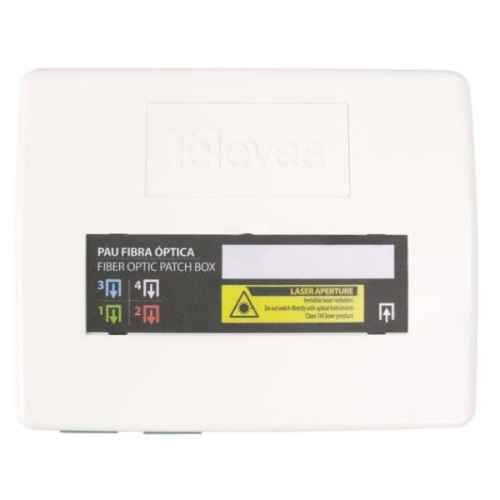

PAU F.O. 4 outputs
PAU fiber optic 4 outputs Televes. Ref. TEL231502.
Enabled device as a point of connection to a fiber optic network. In ICT, and located in the Registry Network Termination (RTR) environments, acts as a cutoff and testing of the optical network.
Thanks to its internal structure, it is possible to stay inside optical fiber (application as PAU), and an optical splitter 4 outputs (application as repartidora box). Fixing can be done by screws (for wall or box shots) or through its DIN rail coupling.
Its main advantages are:
Fiber can access the interior by 5 zones (the 4 corners and bottom).
appropriate measures to facilitate the installation of fiber optics and small radii of curvature avoid damaging the transmission (losses) dimensions.
Guiding the multi-fiber cable it is done from the rear, through multiple attachment points. A terminal block, located on the inside, provides better anchorage. Also, flanges are included if would require a higher level of security.
Cannulas allows accommodate up to 4 fusion.
The SC / APC adapters are incorporating self-locking lid.
Its front cover allows easy identification of the fibers by color coding and housing.
?
Generales?
?Entradas ?6 entradas pre-cortadas en sus laterales, para el acceso de FO
?1 entrada posterior para conector SC
?1 entrada posterior para FO
?1 entrada pre-cortada por la parte inferior, para el acceso al repartidor (SC/APC)
?Salidas Hasta 4 salidas para adaptadores SC/APC
?Material ABS (Blanco RAL 9003)
?Tipo de anclaje Pared / carril DIN
