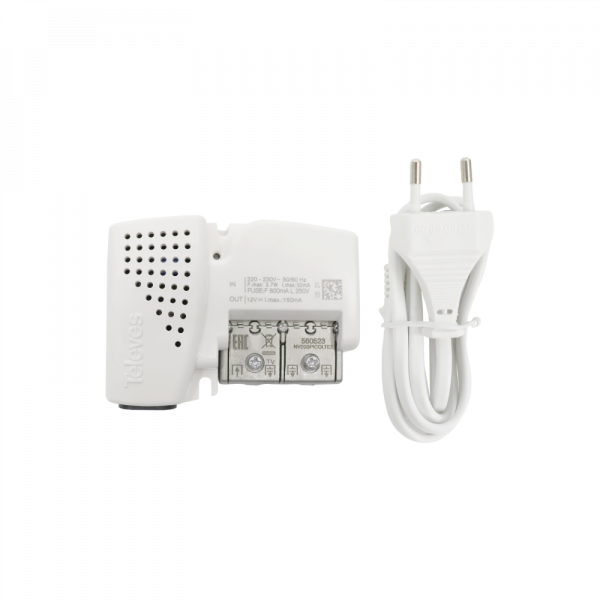

PicoKom Housing Amplifier 3 outputs VHF/UHF LTE700
PicoKom Housing Amplifier 3 outputs VHF/UHF LTE700
Place this amplifier at the output of the terrestrial antenna, at the outlet, or at the distribution point where the signal is distributed, the purpose is the same, improve the lack of signal at one point or divide the signal into several outlets without losing sign.
This amplifier is very easy to install, since the gain is adjusted automatically, without affecting the quality of the signal.
In addition, it has the EasyF connection system, which saves time on connections, since no additional F connector is needed. The coaxial cable (previously stripped) is screwed to the connection in a simple and reliable way, since the clamp that holds the cable prevents the coaxial from coming loose. With this system, future welding failures are avoided.
The amp incorporates a DC pass-through ON/OFF switch, for powering BOSS systems or preamps.
It comes in white, with a removable white plastic casing, which can be screwed to the wall.
Technical Specifications of the PicoKom Home Amplifier 3 outputs VHF/UHF LTE700
?
Outputs 3 (2+1TV)
Frequency margin ? MHz 47…400 470…694
Gain G dB 10 16
Gain adjustment range ? Auto 0…20 Auto 0…20
Max.output level EN 50083 IMD3 (2 tones, -35dB) Vout dB?V 105 108
DIN45004B 98 101
2 CH?s VHF DVB-T 91
10 CH?s VHF DVB-T 92
Noise figure N.F. dB 4
Power supply/Max.
current inputs OFF Vdc/
mA 0/0
ON 12/150
Mains voltage/frequency ? V~/Hz 220…230 / 50-60
AC power consumption ? W 3,7
Through current Out -> In ? mA –
Protection index ? IP 20
Operating temperature range ? ?C -5 … +45
