Power Supply 12V 220mA 2 outputs F

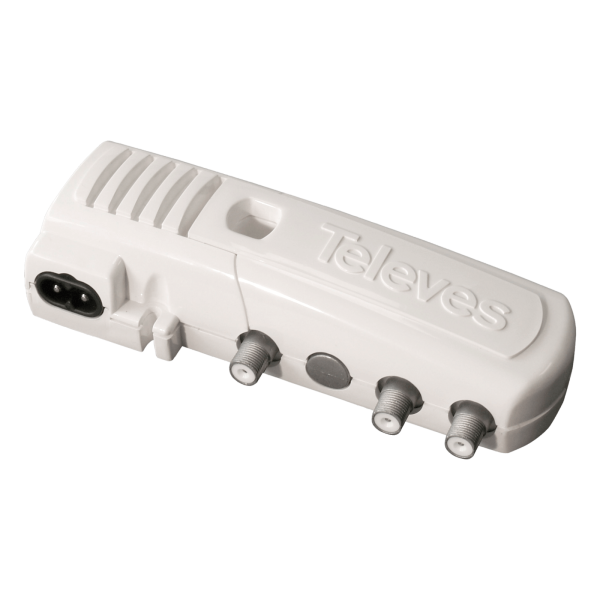

Power Supply F 12V 220mA 2 Outputs Televes 550101
12V 220mA power supply that sends current through the coaxial cable to a mast amplifier or active DTT antenna. It has 2 F-type outputs to connect directly to the TV outlets of the house or to signal distributors with as many outputs as necessary.
High-performance switching source with energy savings of up to 40%. With a discreet, compact and screw-on wall design to install in the telecommunications register of the home.
Indoor power supply 12V 220mA with 2 outputs F for Mast Amplifier and BOSS systems.
What are the main characteristics of the Televes 550101 power supply?
High-performance switched-mode power supply: saves up to 40% power consumption
Low-impact visual design and limited size
?F? connectors
Fully automated manufacturing, subject to the most stringent quality controls
Can be wall-mounted using screws
Through losses may vary depending on whether 1 or 2 outputs are used
What technical specifications does the Televes 550101 power supply have?
Frequency margin MHz 5 – 862
Through loss 1 out dB Main: 1,5 typ. / Aux: —
2 out Main: 4 typ. / Aux: 4 typ.
Output Interstage equalizer V — 12
Max. output
current mA 220
Min. output
current mA 30
Mains Interstage equalizer 207-253 V~ 50/60Hz
Max. consumpt mA~ 30
Protection level IP 20
Working temperature ?C -10 … +45
Plug type UK
