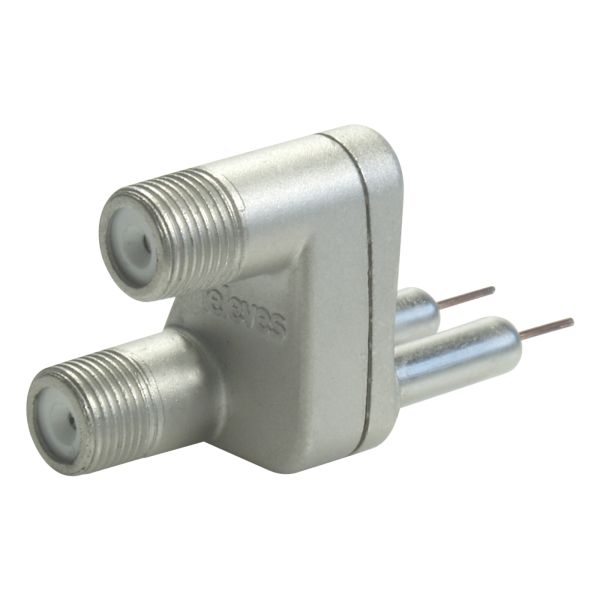

Adapter double of Easy F male to connector F female 405701 of Televes
Adapter double Easy F male to F female Televes
The adapter 405701 of Televes is an adapter made in Zamak, which allows converting a double “EasyF” connection into two female “F” type connections.
With this adapter we can connect a cable with type F connection in a distributor or connection adapter Easy F or flange type.
In addition, thanks to its manufacture in Zamak makes it an adapter resistant to the passage of time.
The Televes 405701 adapter is a female Easy F to F connector adapter.
What technical specifications does the 405701 adapter have?
Adapter made in Zamak
It allows converting a double “EasyF” connection into two female “F” connections.
What is the 405701 adapter used for?
The 405701 adapter from Televes allows us to convert an Easy F connector.
This type of connectors is used by installers to carry out measurements with the field meter on distributors and shunts with Easy F or flange type connectors.
