Power supply 24V 130mA 2 outputs F Televes
Power supply 24V 130mA 2 outputs F Televes 5504
Housing power supply for mast amplifier and DTT antennas at 24V, with 2 type F distribution outputs.
With its 130mA current, this equipment allows to feed a DTT collection set consisting of an active antenna with BOSS system together with a low consumption mast amplifier, offering high signal levels.
It is a high performance power supply, with savings in consumption of up to 40%. Its compact and discreet design with F connectors makes it easy to install in distribution boxes.
This feeder allows the DTT signal to be distributed up to 2 outlets in the house, and splitters can be used for as many outlets as necessary.

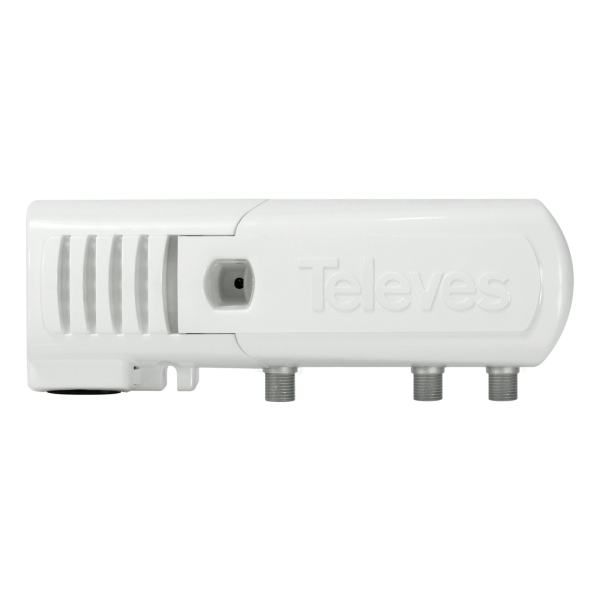

24V 130mA Televes housing power supply with 2 F outputs
What are the main features of Televes 5504 power supply?
High-performance switched-mode power supply: saves up to 40% power consumption
Low-impact visual design and limited size
?F? connectors
Fully automated manufacturing, subject to the most stringent quality controls
Can be wall-mounted using screws
Through losses may vary depending on whether 1 or 2 outputs are used
What technical specifications does the Televes 5504 power supply have?
Frequency margin MHz 5 – 862
Through loss 1 out dB Main: 1,5 typ. / Aux: —
2 out Main: 4 typ. / Aux: 4 typ.
Output Interstage equalizers V — 24
Max. output current mA 130
Min. output current mA 30
Mains volt. 207-253 V~ 50/60Hz
Consumpt m?x. mA~ 35
Protection Level IP 20
Working temperature ?C -10 … +45
Plug type EU
