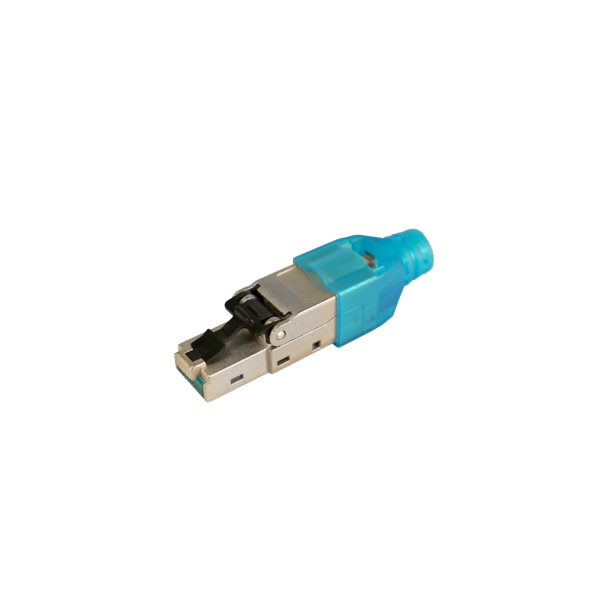

RJ45 Male Grip Cat6A Connector Televes 209924

Name: RJ45 Male Grip Cat6A Connector Televes 209924 | +254720548999
SKU: TEL209924

With this connector you do not need any specific tool since the crimping is done by pressure when closing the connector. This consists of two moving parts that fit over the cable, ensuring that it does not move and fixing the cable pairs.

It can be reused, without being damaged or losing functionality without adding losses to the cable.

The connector is compatible with Category 6A or lower. The cable entry is made from the front, without adding elbows. The connector contacts are 50 micron gold plated.

Technical Specifications of the RJ45 Male Grip Cat6A Connector Televes 209924

Data connector model ? Male
Data connector type ? RJ45
Categorie ? Cat 6A
Connector shielding ? Yes
Contact resistance m? 100
Insulation resistance M? 500
Conductor type AWG ? 23 … 26
Special tool required ? No
Durability (connection cycles) ? 1500
Reusable ? Yes
Cable output ? 180?
Colour ? Matte Inox

Compatibility of RJ45 connectors with Televes data cables:
Reference 219602 219701 219502 ??2199?? 212201 ??2123?? 212302 212305 212310 212101 219302 219102 219312 219322
Female
Connectors 209905 ? ? ? ? ? ? ? ? ? ? ? ? ? ?
209901 ? ? ? ? ? ? ? ? ? ? ? ? ? ?
209921 ? ? ? ? ? ? ? ? ? ? ? ? ? ?
209903 ?* ?* ? ?* ?* ?* ?* ?* ?* ? ? ? ? ?
209923 ?* ?* ? ?* ?* ?* ?* ?* ?* ? ? ? ?* ?
Male
Connectors 209902 ? ? ? ? ? ? ? ? ? ? ? ? ? ?
209904 ?* ?* ? ?* ?* ?* ?* ?* ?* ? ? ? ? ?
209924 ?* ?* ?* ?* ?* ?* ?* ?* ?* ?* ? ? ?* ?

? Compatible
?* Compatible, but there are better choices
? Incompatible
