Streamer with DVBS/S2-IP Remultiplexing with Televes CI
DVBS/S2-IP Remultiplexing Streamer with Televes ICs

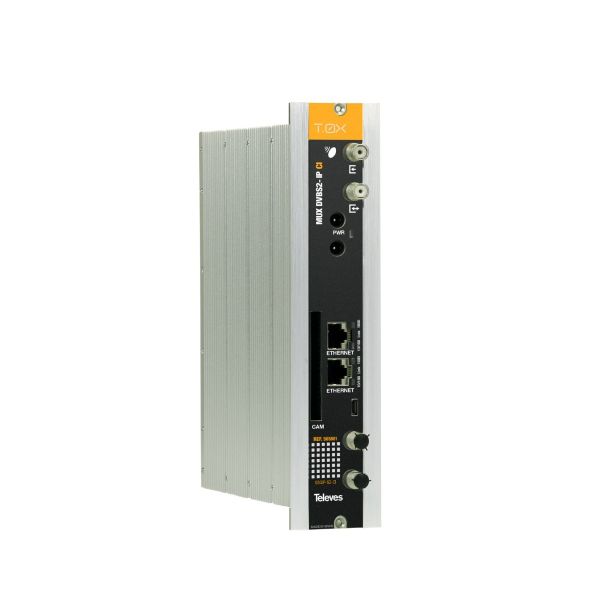

Do you need to transform satellite channels into IPTV in a professional way** The Televes 565801 is much more than a simple converter: it is a true remultiplexing streamer, capable of receiving DVB-S or DVB-S2 signals and converting them into IP multicast or unicast streams, facilitating their distribution on Ethernet networks.
Thanks to its CI slot, it allows the insertion of CAM modules to decode encrypted services, making it ideal for hotels, hospitals, residences or educational centers that want to offer a customized grid with premium or local channels without depending on individual decoders.
Its powerful remultiplexing function allows you to create new IP TS, selecting only the services you are interested in from different transponders, optimizing bandwidth usage. In addition, everything is conveniently configured from an intuitive web interface, with remote access for adjustments or updates without having to travel.
Can you imagine a hotel where all the rooms watch the guest’s favorite international channel without decoders in every TV set** Or a residence where you can update the TV grid from your laptop without moving a single cable** With the Televes 565801, this is not only possible, it’s very easy.
Its intelligent fan only activates when it needs to, even the streamer doesn’t want to make extra noise! The device allows you to select multiple services from different MUX to create your own IP TS.
Package contents:
1 ** Televes 565801 Streamer.
Bracket and hardware for rack or wall mounting
Power cable
Quick installation manual
Turn your installation into an advanced IPTV system with the 565801, saving costs, space and maintenance. Make your network smarter!
Technical Specifications of the DVBS/S2-IP Remultiplexing Streamer with Televes CI
Input frequency range MHz 950 … 2150
Symbol rate Mbaud 2 … 45
Frequency steps MHz 1
Entry level dBm -60 … -20
Input impedance Oh 75
Losses of passage dB < 1,5
DVB-S2 modulations ? 8PSK / QPSK
DVB-S modulations ? QPSK
Internal FEC ? LDPC (9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2)
External FEC ? BCH (Bose-Chaudhuri-Hockenghem)
Factor de roll-off ? 20% / 25% / 35%
ROE Min ? 10.0000
LNB supply voltage Vdc 13 ... 17
LNB request (22KHz) ? And
Satellite Selection (DiSEqC) ? A / B / C / D
IP output mode ? Multicast / Unicast
IP Protocol ? IPv4 / DHCP / UDP/RTP
IP streams SPTS ? 32
Data rate Mbps 150
Service signage ? M3U / Pro:Centric / SAP / Tizen
Supply voltage Vdc 24
Max current consumption (Module) m.a. 450
Maximum current consumption (CAM) m.a. 100
Max current consumption (LNB) m.a. 250
Current consumption m.a. 1050
RF connectors ? "F" female
Data connector type ? RJ-45 Gb Ethernet
Protection index (IP) ? 20
Operating temperature ?C 0 ... 45
