RJ45 Male UTP Category 6 Connector by Televes

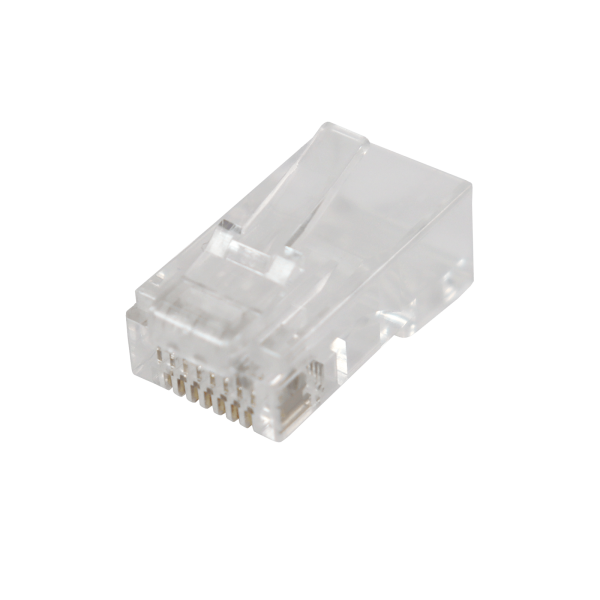

Category 6 Male UTP Connector Without Televes Guide 209902
RJ45 Male connector for Category 6 or lower UTP network cable. Supplied per unit.
It allows the connection of structured cabling without added losses. For its assembly it is required to use a crimping plier.
The RJ-45 connector has 8 gold-plated connection pins, compatible with data cable (8 wires) or telephone cables (2 wires).
RJ45 Male Televes connector for Category 6 UTP data cable
What are the main characteristics of Televes RJ45 Connector 209902?
Multiple-connection guaranteed without losses
Main features
Compatible with Cat 6 or below
Mounting requires a crimping plier
Gold-plated pins
The RJ45 is a connector commonly used in structured cable networks. With up to 8 connection pins, it is adequate both for data networks (8 pairs), as well as telephone networks (2 pairs). It is usually used in networks compliant with standards TIA/EIA-568-B.
What technical specifications does Televes RJ45 Connector 209902 have?
IDC N.? EIA/TIA 568 A EIA/TIA 568 B
Pair Wire colour Pair Wire colour
PIN5 1 White/Blue 1 White/Blue
PIN4 Blue Blue
PIN1 3 White/Green 2 White/Orange
PIN2 Green Orange
PIN3 2 White/Orange 3 White/Green
PIN6 Orange Green
PIN7 4 White/Brown 4 White/Brown
PIN8 Brown Brown
