SC/SC Singlemode Duplex Fiber Optic Adapter with Cover Televes
Straight Duplex Singlemode SC Fiber Optic Adapter with Cover 233210 from Televes
Adapter to extend our fiber optic cabling without having to merge or make mechanical splices. We will connect the hoses, lengthening our installation.
The connectors that we can connect together will be male optical connectors with SC mechanics on both ends. They must have the same type of polishing to avoid losses (APC, which is green).
It is compatible with single-mode fibers. Allows installation using clip or retaining screws (not included).

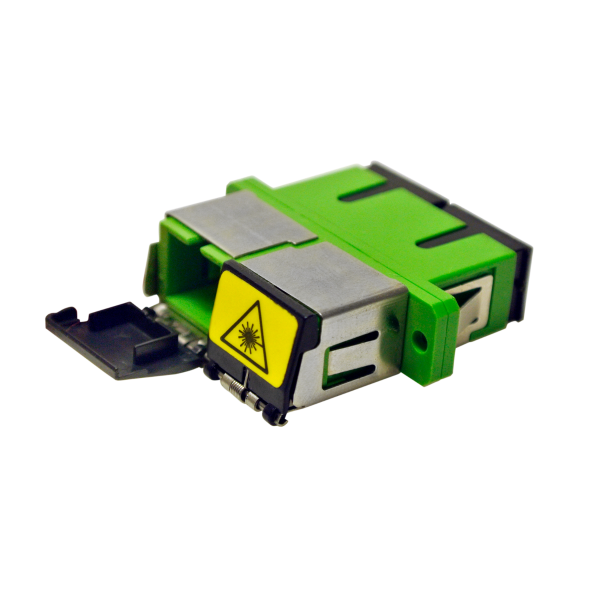

The body of the connector is made of plastic, very resistant to impacts or corrosion. It comes with a built-in lid with protection (with spring) on one end and a removable cap on the other. The connector is duplex type, for connecting two fiber cables at each end.
Technical Specifications of the Straight Duplex SC Singlemode Fiber Optic Adapter with Cover 233210 from Televes
Optical connector type 1
?
SC Duplex
Polishing type (Optical connector 1)
?
APC
Optical connector type 2
?
SC Duplex
Polishing type (Optical connector 2)
?
APC
Fiber type
?
Single-Mode
Ferrule
?
Ceramic
Protection cap
?
Auto-blocking cap
Insertion losses
dB
0.2
Return losses (typ.)
dB
60
Durability (connection cycles)
?
1000
Housing material
?
Plastic
Colour
?
Green
Fastening type
?
Click
Operating temperature
?C
-40 … 70
