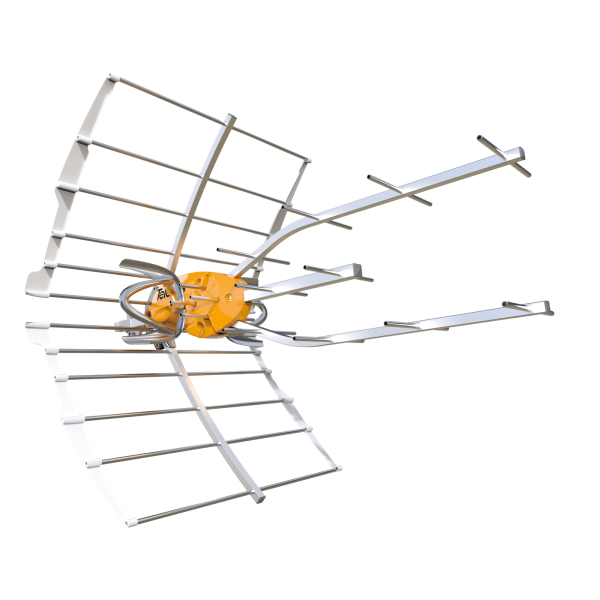

Ellipse LTE 5G UHF Antenna (C21-48) 38dB (Bag)
Ellipse UHF LTE 5G Antenna without power (In box of 8 units)
38dB high gain DTT-UHF antenna adapted to the 2nd Digital Dividend to receive the new UHF band from channel 21 to 48 (470-694 MHz). Supplied in boxes of 8 units without including the power supply.
Its BOSS system automatically regulates the gain according to the intensity of the received signal, to offer an optimal and constant output level. This technology is capable of combating signal fading. Its high selectivity eliminates all 5G interference, even at the limit of the UHF band.
Made of aluminum and fiberglass, which makes it totally immune to corrosion. Easy to assemble in just 30 seconds and without tools for installation. With robust and permanent anchorage to prevent it from moving, and therefore disorienting, over time.
This antenna requires 12-24V power (Not included).
IMPORTANT: Order multiple units of 8
Ellipse Televes UHF-DTT antenna without power supply and supplied in boxes of 8 units.
What are the main characteristics of the Televes Ellipse 148920 UHF antenna?
The best antenna for range of DTT coverage: It receives the signal in multiple locations, whether the signal is strong or weak
Capable of adapting to ever-changing conditions for signal reception: It is constantly checking the signal and autoadjusting its gain in order to always provide the best output level possible
Eliminate any interference, even in the limits of the TV band: thank to its SAW filter (Surface Acoustic Wave), which performs a great selectivity, interferences are filtered, mainly the telephone LTE ones, respecting the last channel of the band
Mechanics completely immune to corrosion: Aluminium and fiberglass structure, stainless steel screws and reinforced ZAMAK clamp with an anticorrosive core
Innovative aerodynamic design: Unsurpassable aesthetics show a meticulous design and passion for details
Curves enhance reception: the concave surface created by the reflectors focus the signal on the dipole. The convex external side maximize screening and rejection against interferences
Assembly process: Quick assembly in less than 30 seconds and all the installation is carried out with no tools required
A robust and permanent fastening system that avoids malfunctioning over time
Extremely lightweight and compact: it makes installation in challenging locations easier and offers lower wind resistance
The highest dynamic range: it allows the reception of a quality signal in a variety of situations, detecting very weak signals and avoiding overload with high reception levels
Optimal C/N: the signal quality is always preserved thanks to a very low noise figure
Optimal gain: intelligence autoadjusts the gain to the optimal level
Special double-U dipole: it’s open/close format provides optimal frequency response flatness
A fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
Low consumption in intelligent mode
Made in Europe: Manufactured in a fully automated production and verification line that ensures the highest level of performance guarantee
What technical specifications does the Televes Ellipse 148920 UHF antenna have?
Working band MHz ?470 – 694 (CH.21 – CH.48)
?Mode ?Intelligent (BOSS ON)
?Gain ?dBi 38?2
?Output level Auto
?Noise figure ?dB 2,5 (typ)
?Signal level of use (recommended) ?dB?V <75
?Powering voltage ?V 12-24
?Consumption ?mA 40 (max)
?Beamwidth ?? 30
?F/B ratio ?dB >20
?Wind load ?N 96 (@ 130 Km/h)
132 (@ 150 Km/h)
?Mast diameter ?mm 20…50
