Shunt with F connector 6 outputs with losses of 20dB
6 outputs and 21dB losses

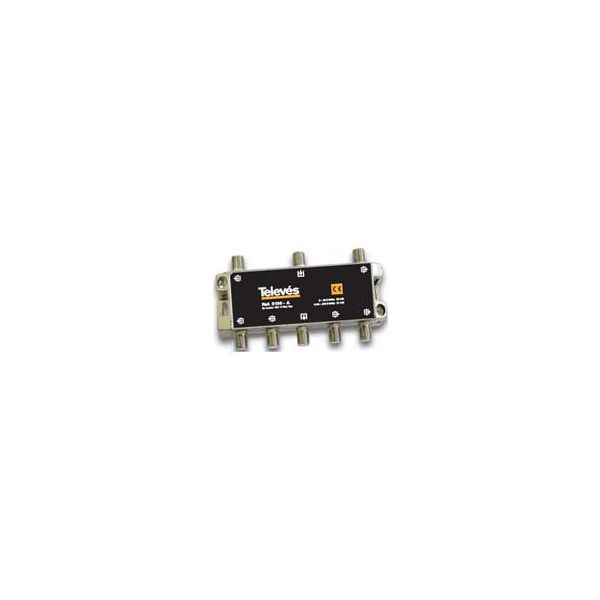

The Televes 5136 shunt is a 6-way shunt with F-type connection for SMATV signals.
Due to its 21dB of losses in the derivation, this derivative is advisable to install it in floors 2 and 3 of the building.
It is used for installation inside the house.
6-lead shunt and F connectors, for SMATV signals with a bypass loss of 21dB.
What technical characteristics does the 5136 derivative have?
F connectors
Improvement of step losses
Good screening
Includes grounding screw
Bidirectional DC step between the entrance and the exit of passage
What technical specifications does the 5136 derivative have?
Frequency range MHz 5-2400
47-862 950-2150
Number of departures 6
Plants 2 & 3
Passage losses dB 2,3 4
Bypass losses 20
Rejection between derivation> 20
DC step (max.) A 1 (Exit ? Entr.)
