Splitters Nevoswitch 5x5x5 “F” 12dB

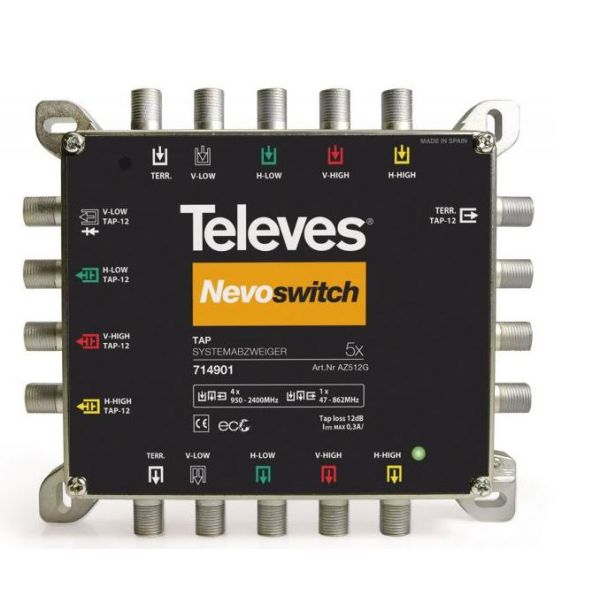

Shunt Nevoswitch 5x5x5 “F ” 12dB . Ref . 714901 Televes .
This device complements nevoswitch multiswitch range , so that the installation is achieved expand to a larger number of users by optimizing the signal will reach each.
Highlights:
Zamak chassis that makes them immune to radiation.
scalable system for star topologies and waterfall.
Independent adjustment of the output level to each user (except range QUAD Compatible) .
ECO low-power mode .
ECO system has the consumption of the installation is reduced with decreasing the number of connected users. ?
Characteristics:
Small size and compact design.
Configurable.
independent amplification lines .
Multiple power options ( Jack , line VL , user input or terrestrial and output connectors ) independent level control on each output
?
