Shunt with flange 4 outputs (12 dB)

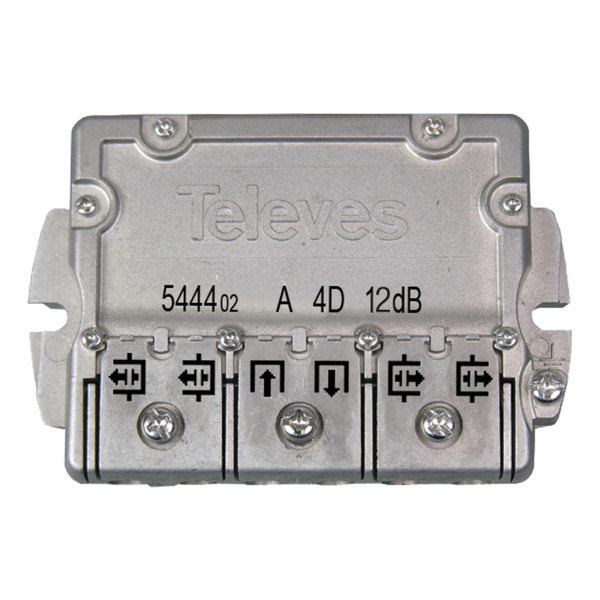

Derivator 544402 with 4 flange outputs and 12dB
This TA type passive distribution device has 4 outputs with EasyF flange and 12dB Televes attenuation.
Derivator for terrestrial signals and SMATV satellites (5-2400 MHz).
Due to its low bypass losses, its installation on the first floor is recommended. Derivator to be installed indoors, it can always be installed outdoors inside a chest that protects it.
Derivador Televes 544402 with 4 outlets type EasyF type TA flange to be installed in the farthest plants.
What are the main features of the Televes 544402 shunt?
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
Bidirectional DC pass between input and pass output
What technical specifications does the Televes 544402 shunt have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 4
Floors 1
Through loss dB 3,5 4,2
Tap loss 13 12,5
Rejection between taps >28 >21
DC Pass (max.) mA 300 (in.?out.)
