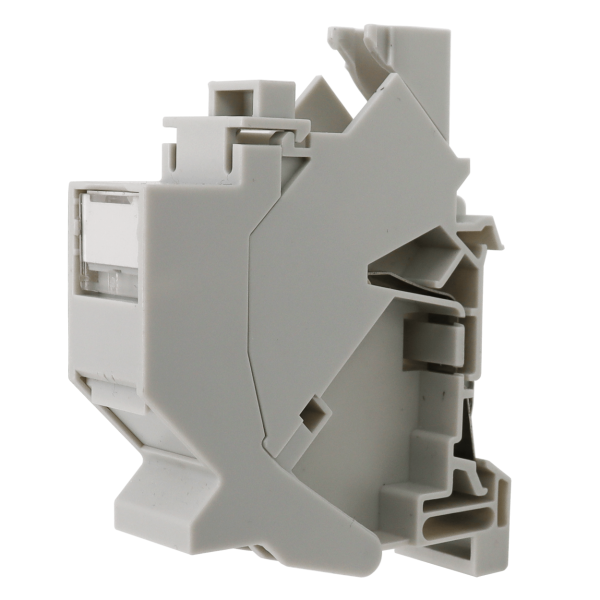

Televes RJ45 FTP Category 6 Female Socket Adapter Grip Mounting DIN Rail Support
Televes RJ45 FTP Category 6 Female Socket Adapter Grip Mounting DIN Rail Support
This connector allows us to connect category 6A RJ45 cables. It is reusable and its connection is very simple, as no specific tool is required for its assembly. The connector includes 2 pieces that snap together to attach to the cable.
This module comes with a grip type support for standard DIN rail with grounding, through which allows us to hold the connector in rack, control cabinets or any other DIN rail installation. The connector consists of two movable parts that close over the cable to hold it.
The module has an inclination of 45** to reduce cable bending and take advantage of the greatest possible space. Being reusable, we guarantee multiple connections without added losses.
The module includes a window to add identification tags.
Technical Specifications of the Televes Keystone Module RJ45 FTP Category 6 FTP Female Grip Mount DIN Rail Support
?
Data connector model
?
Female
Data connector type
?
RJ45
Category
?
Cat 6A
Type of shielding
?
FTP
Housing material
?
Zinc alloy
Max. voltage
Vac
?
Max. current
mA
1,5
Contact resistance
m?
?
Insulation resistance
M?
?
Dielectric strength (60Hz/1min)
Vac
1000
Type of conductor AWG
?
26 … 23
Special tool required
?
No
Operating life (no. of connections)
? ?
Reusable
?
Yes
Cable output
?
180?
