Shunt with flange 4 outputs (16 dB)
4-way shunt with 5-2400 MHz flange of 16dB

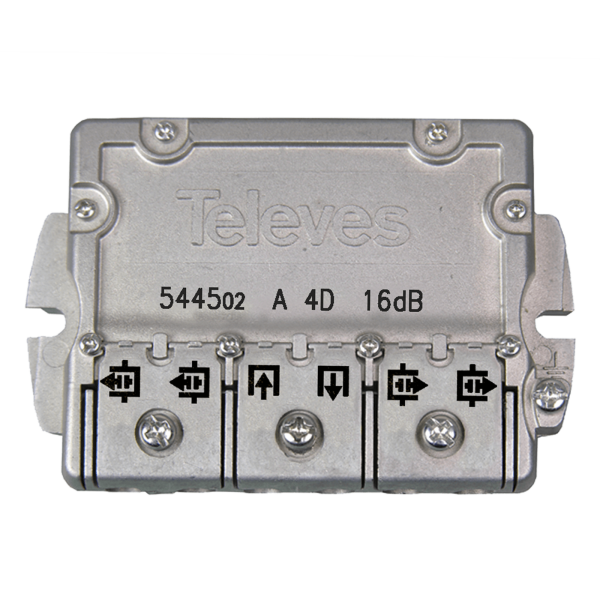

544502 passive bypass type A**equipment with 4 “EasyF” outputs by Televes, for SMATV signals.
Recommended for installation indoors, between floors 2 and 3, due to its attenuation of 17dB for terrestrial frequencies and 16dB for satellite.
Its connections with EasyF flange greatly facilitate its connection, in addition to reducing the cost when made with bare wires directly, without connectors.
4-way shunt with terrestrial and satellite flange (5-2400MHz) with 16dB attenuation, designed to be installed on floors 2 and 3.
What are the main features of the Televes 544502 shunt?
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
Bidirectional DC pass between input and pass output
What technical specifications does the Televes 544502 shunt have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 4
Floors 2 & 3
Through loss dB 3,3 3,5
Tap loss 17 16
Rejection between taps >27 >20
DC Pass (max.) mA 300 (in.?out.)
