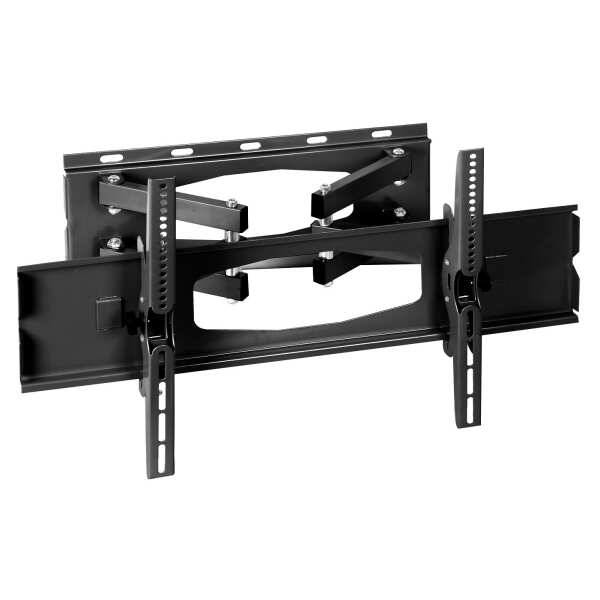

Skill Tech SH 60P Affordable Full-Motion TV Wall Mount For Double Stud
SH 60P
Affordable Full-Motion Tv Wall Mount For Double Stud
Product Category: Full-Motion TV Wall Mount
Rank: Economy
Material: Steel
Surface Finish: Powder Coating
Color: Fine Texture Black

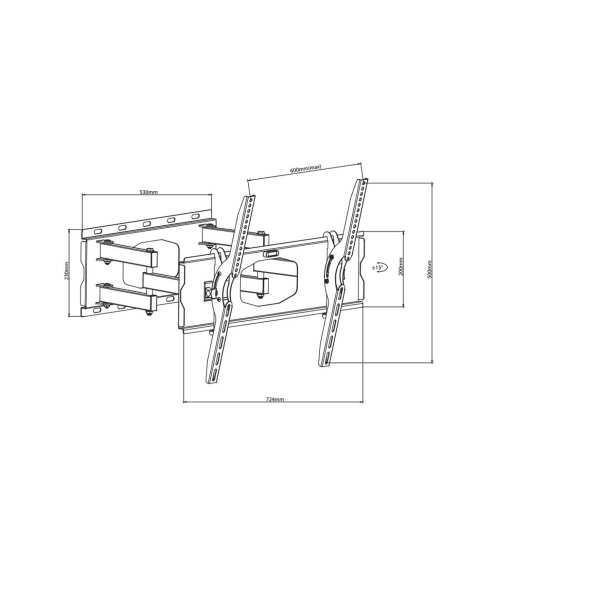

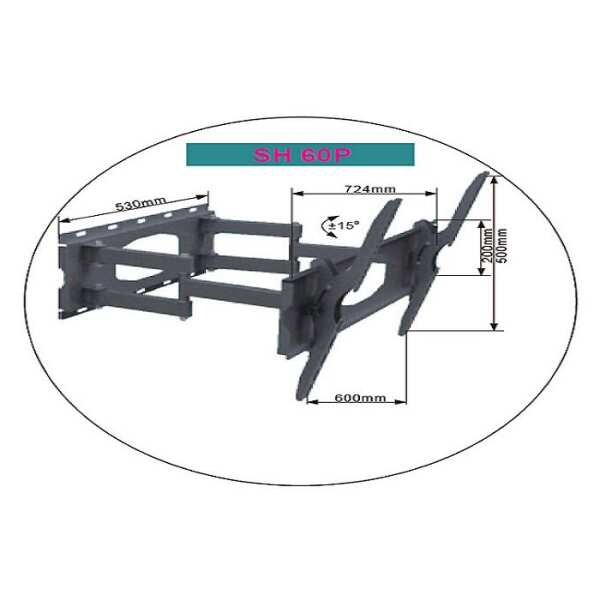

Dimensions: 724x520x500mm
Fit Screen Size: Suitable For Most 32″ ~ 75″ Screen
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
Max. VESA: 600x400mm
Weight Capacity: 40kg
Profile: 120-520mm
Tilt Range: +5° ~ -15°
Swivel Range: +60° ~ -60°
Screen Level: +3° ~ -3°
Installation: Double Stud,Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
The SH 60P is an affordable Full-Motion
TV Wall Mount designed for double-stud installations, offering a
budget-friendly solution for accommodating most 32 to 75-inch screens,
including curved TVs. Constructed from sturdy steel material with a fine
texture black powder coating, it provides durability and a sleek
appearance.This wall mount boasts VESA compatibility, supporting various
mounting hole patterns such as 200×200, 300×300, 400×200, 400×400, and
600×400, with a maximum VESA size of 660x480mm. It offers a substantial
weight capacity of 40kg, ensuring the secure mounting of your TV.The profile
ranges from 120mm to 520mm, allowing you to achieve the desired distance
between the TV and the wall. The mount provides a tilt range of +5° to -15°,
enabling you to adjust the screen’s angle for optimal viewing. It also
features an impressive swivel range of +60° to -60°, along with a screen
level adjustment of +3° to -3°, providing flexibility to find the perfect
viewing position.Installation is versatile, with options for double stud and
solid wall mounting, and it includes a detachable panel for ease of setup.
The wall plate type is fixed, ensuring stability and reliability. In summary,
the SH 60P Full-Motion TV Wall Mount offers an affordable solution for those
seeking a reliable and flexible mounting option for their mid to large-sized
TVs
