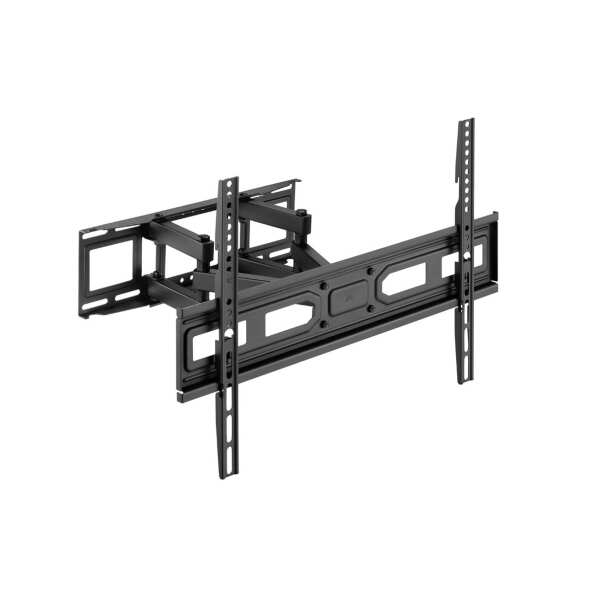

Skill Tech SH 800P Full Motion LED / Curve TV Wall Mount
SH 800P
Full Motion LED / Curve TV Wall Mount
Product Category: Full-Motion TV Wall Mount
Rank: Economy
Material: Steel,Plastic

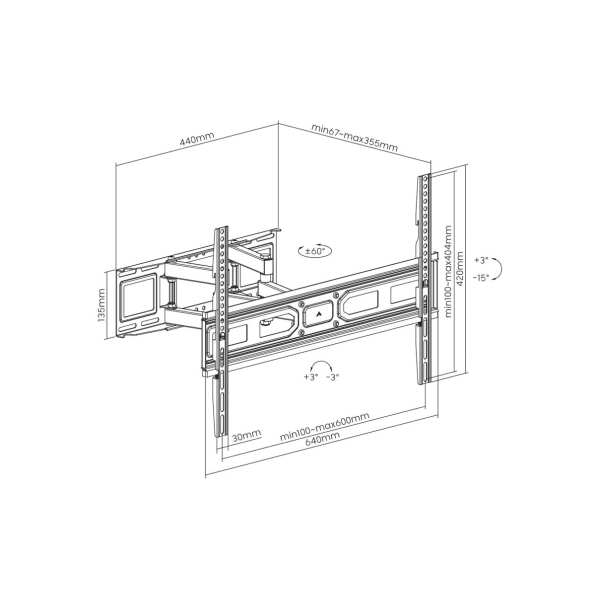

Dimensions: 355x640x420mm (14″x25.2″x16.5″)
Fit Screen Size: Suitable For Most 37″ ~ 82″ Screen
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
Max.Vesa: 600x400mm
Weight Capacity: 40kg (88lbs)
Profile: 67-355mm (2.6″~14″)
Tilt Range: +3° ~ -15°
Swivel Range: +60° ~ -60°
The SH 800P is an economical Full-Motion
TV Wall Mount designed for LED and curved TVs, offering versatility and
affordability. With dimensions of 355x640x420mm
(14″x25.2″x16.5″), it’s suitable for most 37 to 80-inch
screens, providing a secure and flexible mounting solution. Constructed from
steel and plastic materials, this wall mount ensures durability and
reliability.It features VESA compatibility, supporting a wide range of
mounting hole patterns, including 100×100, 100×150, 150×100, 100×200,
200×100, 150×150, 200×200, 300×200, 400×200, 300×300, 400×300, 600×200,
400×400, 600×300, and 600×400, with a maximum mounting hole size of
600x400mm. The mount can accommodate TVs with a weight of up to 40kg
(88lbs).The profile of the SH 800P ranges from 67mm to 355mm (2.6″ to
14″), allowing you to achieve the desired distance between the TV and
the wall. It offers a tilt range of +3° to -15°, allowing you to adjust the
screen’s angle for comfortable viewing. Additionally, it provides a swivel
range of +60° to -60°, offering flexibility in positioning your TV.This wall
mount is designed for easy installation and includes both VESA and universal
mounting options. Overall, the SH 800P Full-Motion TV Wall Mount is a
cost-effective choice for those seeking a practical and reliable solution to
mount their LED or curved TVs securely and adjust them for optimal viewing
angles.
