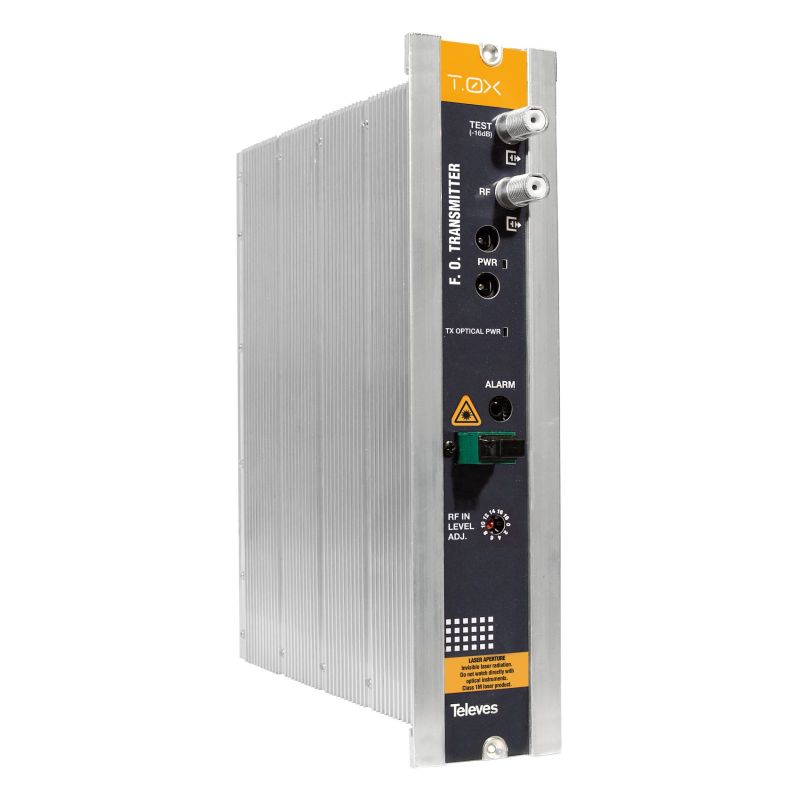

SMATV optical transmitter (without Return Path) 1550nm Televes

Name: SMATV optical transmitter (without Return Path) 1550nm Televes | +254720548999
SKU: TELEVES-234305
Price: 247324.00 KES
Availability: InStock

KSh247,324.00

Produces an optical signal in the 1550nm-window modulated by the input RF SMATV signal (54 MHz- 2150 MHz). The optical output power is 4dBm.**Perfect for RFoG / RF Overlay solutions. Televes 234305

Produces an optical signal in the 1550 nm-window modulated by the input RF SMATV signal (54 MHz- 2150 MHz). The optical output power is 4dBm.?
Perfect for RFoG / RF Overlay solutions.

Highlights
SMATV-compatible: up to 2150 MHz input bandwidth
RF input level control: optimization of the optical conversion quality parameters
Optical power drop alarm
Features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specifications
Reference 234305
RF Input/Output Frequency Range Forward channel MHz 54…2150
Maximum input level for
CSO & CTB >=60 dB 54 – 870 MHz

dBmV /

dB?V

25 / 85
950 – 2150 MHz? 20 / 80
Input level regulation margin (in 2dB steps) dB 0 – 18
Equivalent input noise EIN 850 MHz dBm/Hz -150
2000 MHz? -146
Return losses dB >= 10
Impedance Ohm 75
Test port attenuation dB 16

Optical output

Laser tipo MQW-DFB
Wavelength nm 1310 ?20
Output optical power mW/dBm 2.5/4

General

Powering / Consuption 12Vdc mA 265
24Vdc 140
RF connectors type F female
Optical connectors type SC / APC
Operating temperature

-5 … +45

+23 … +113
