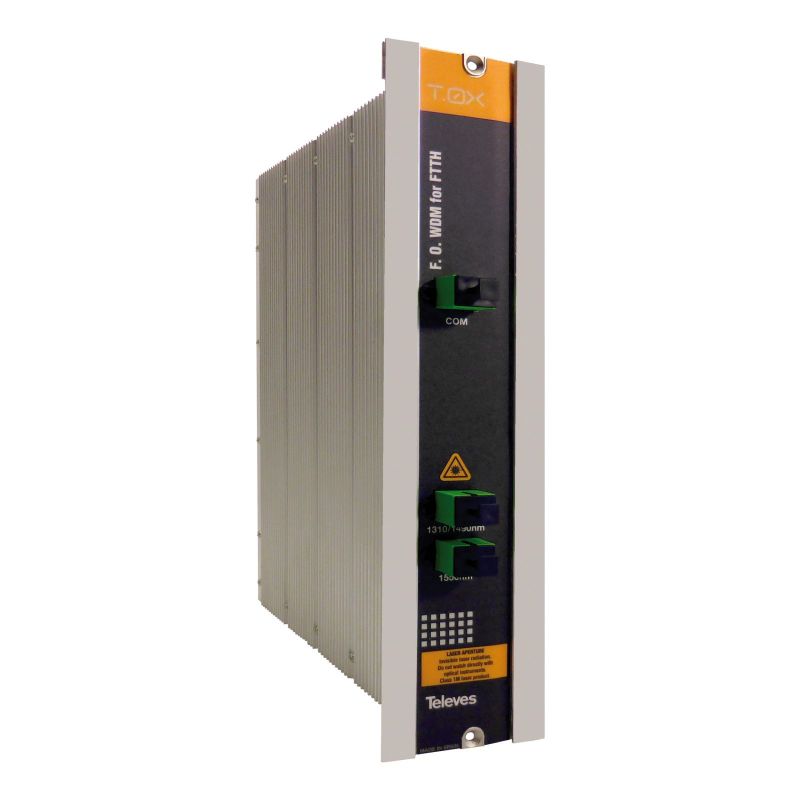

T.0X (WDM) optical multiplexer 1310/1490 – 1550nm Televes

Name: T.0X (WDM) optical multiplexer 1310/1490 - 1550nm Televes | +254720548999
SKU: TELEVES-234701
Price: 88066.00 KES
Availability: InStock

KSh88,066.00

Passive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks.**The T.0X format frame allows rack installation for optical fibre headends. Televes 234701

Passive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks.?
The T.0X format frame allows rack installation for optical fibre headends.

Features
Low insertion loss
SC/APC connectors
Specifications
Optical Channel Performance
Reference 234701?
Working wavelength nm 1270?1350
1475?1505 1540?1565
Insertion losses (?) 1310/1490 nm dB 0.5 > 25
1610 nm dB — —
1550 nm dB > 15 0.7
Potencia ?ptica m?x. dBm +17 +22
General Optical Performance
Return losses dB > 50
Directivity dB > 50
PDL dB < 0.1 PMD ps < 0.1 Optical conectors Type SC / APC General Performance Operating Temp ?C ?F -5 ... +45 +23 ... +113 Protection index IP 20
