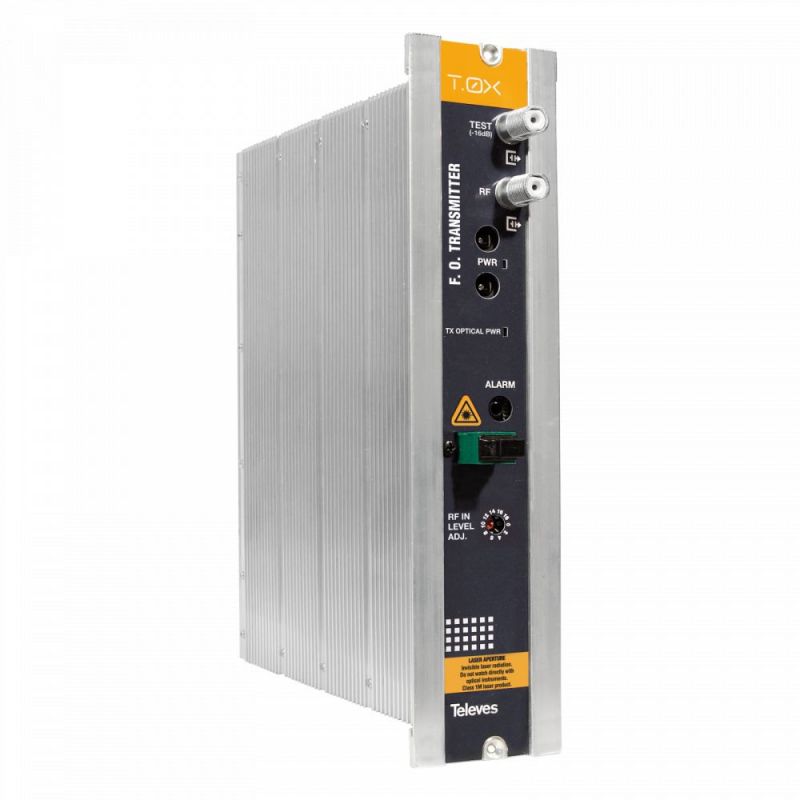

T.0X Optical Transmitter SMATV 1310nm “SC/APC” Po 6dBm…
KSh294,514.00
**
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2200 MHz). The optical output power is 6 dBm.?
Perfect for RFoG / RF Overlay solutions.
Highlights
SMATV-compatible: up to 2200 MHz input bandwidth
RF input level control: optimization of the optical conversion quality parameters
Optical power drop alarm
Features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specifications
RF parameters Frequency range MHz 47 – 2200
Flatness 47-1200 MHz dB ?0.5
950-2200 MHz ?2
Impedance Ohm 75
Input level RF dB?V 73 – 93
SAT 63 – 83
Manual gain adjustment dB 0 … 14 (2dB steps)
C/N dB >51
CSO dB >60
CTB dB >60
Optical Laser type MQW – DFB
Wavelength nm 1310 ? 10
Output optical power dBm 6
General RF connectors type ?F? female
Optical connector SC/APC
Consumption 12 Vdc mA 260
24 Vdc 155
Operating temperature ?C -5 … +45
