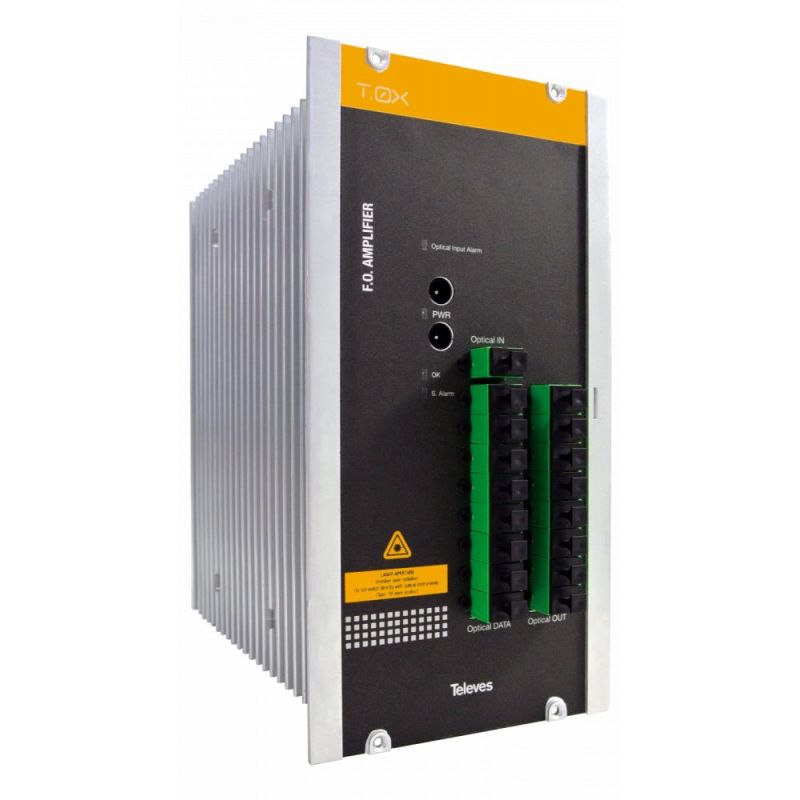

T.0X Amplifier/Optical Multiplexer 1550nm 8S “SC/APC” 20dBm…
KSh3,156,890.00
The module amplifies the 1550 nm optical signal producing an output power of 20 dBm. Equipped with WDM, it provides 8 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 8 1310 nm/1490 nm/1550 nm-outputs to be used in a GPON headend (usually OLT512).****Televes 234228
The module amplifies the 1550 nm optical signal producing an output power of 20 dBm. Equipped with WDM, it provides 8 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 8 1310 nm/1490 nm/1550 nm-outputs to be used in a GPON headend (usually OLT512).?
Based on YEDFA (Erbium and ytterbium doped fibre) technology, it provides a high gain, a higher optical power, and a low noise factor.
Highlights
Outstanding optical output power of 20 dBm
Equipped with WDM for the multiplexing of RF Overlay with GPON signals
-10 dBm to +10 dBm input range
Status LED indicators
Features
Optical amplification for the RF service over fibre (RF Overlay) on GPON networks
Suitable for long distances
SC/APC connectors
Specifications
OPTICAL
V?deo Overlay
INPUT
Input optical power range dBm -10…+10
Input connector tipo 1x SC / APC
Operating wavelenght nm 1548…1565
OPTICAL
GPON
INPUT
Insertion loss(1310nm & 1490 nm) dB <1 Input connector tipo 8 x SC/APC Operating GPON wavelenght nm 1310?20 - 1490?20 OPTICAL OUTPUT Output optical power per port (1550nm) dBm 20 ? 0.5 Output connector tipo 8 x SC/APC Noise figure dB Tip. 5 (Pin=0 dBm 1550nm). M?x 7. Optical return losses dB ? 40 GENERAL Powering Vdc 24 M?x. Consumption @ 24 Vdc mA 700 Ingress protection level IP 20
