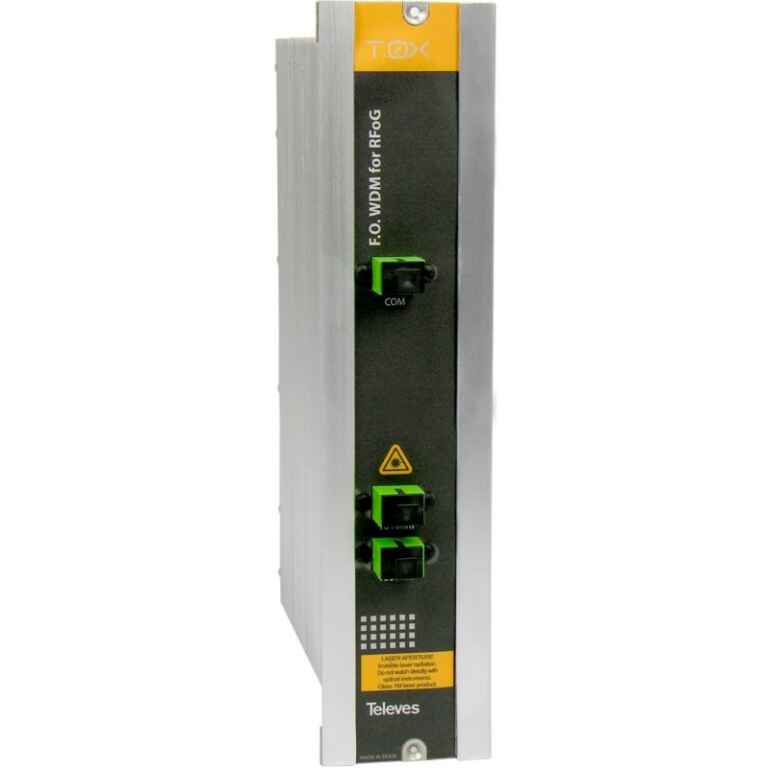

T.0X (WDM) optical multiplexer 1610 – 1550nm Televes
KSh88,066.00
Passive device that multiplexes/demultiplexes two optical inputs: 1610 nm (GPON), and 1550 nm (Downlink). For application in RFoG systems.?The T.0X format frame allows rack installation for optical fibre headends. Televes 234702
Passive device that multiplexes/demultiplexes two optical inputs: 1610 nm (GPON), and 1550 nm (Downlink). For application in RFoG systems.?
The T.0X format frame allows rack installation for optical fibre headends.
Features
Low insertion loss
SC/APC connectors
Specifications
Optical Channel Performance
Reference 2347012
Working wavelength nm 1600?1620 1540?1565
Insertion losses (?) 1310/1490 nm dB — —
1610 nm dB 0.6 > 30
1550 nm dB > 13 0.4
Potencia ?ptica m?x. dBm +24 +24
General Optical Performance
Return losses dB > 50
Directivity dB > 50
PDL dB < 0.1
PMD ps < 0.1
Optical conectors Type SC / APC
General Performance
Operating Temp
?C
?F
-5 ... +45
+23 ... +113
Protection index IP 20
