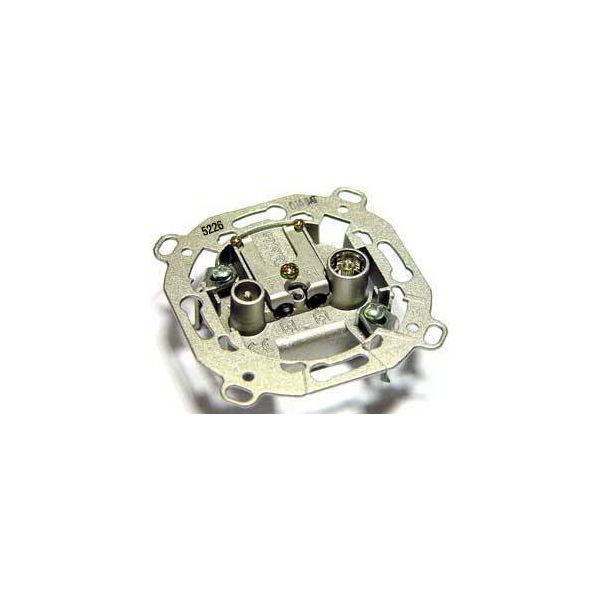

Take TV / FM – SAT Final (1.5 dB)
Take Separating TV / FM-SAT. Ref: 5226 of Televes.
Take separating TV / FM-SAT. It is the most used of all takes. Less signal loss, it is used in the final stretch of the waterfall, or directly log into the antenna cable to the socket, in houses.
Features:
?Live fast and safe setting.?
?Firm clamping of the living as if it were a screw.?
?Guide connector type F to enter the living.?
?Wide range in length vivo (5 ? ? ? 15 mm) which hinders short between live and mesh.?
?Flange on top with opening 150 ?.?
?The flange has 3 jagged rows in 9 mm for perfect fastening of the mesh.
