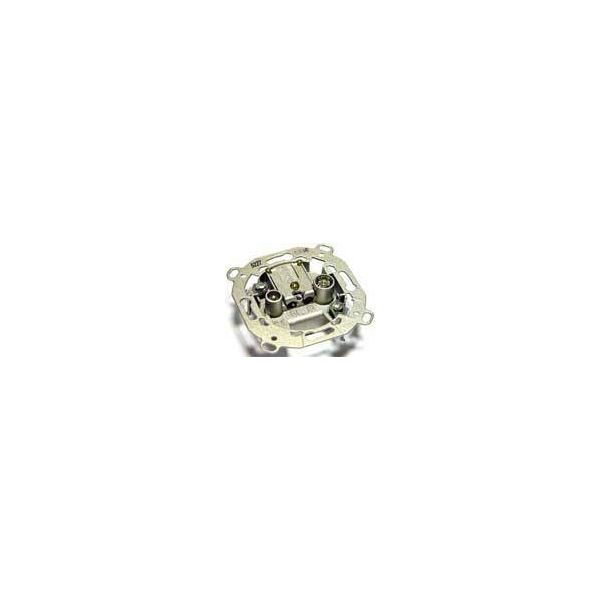

Take TV / FM – SAT intermediate (14 dB)
Taking Step 14 dB + C.C & quot; T & quot; (Levels 3, 4 and 5). Ref. 5227 Televes.
These jacks are used for signal distribution up to 2400 MHz. With the four available values ****can form a cascade with well equalized signal values. This jack is used in the intermediate section of the waterfall, with a loss of 13 dB to 14 dB for UHF and FI.
