Tap-off 5-2400 MHz 2D 16dB, A (2,3 floors) 519323 from Televes
2-Way 16dB F Tap (Type A) 519323

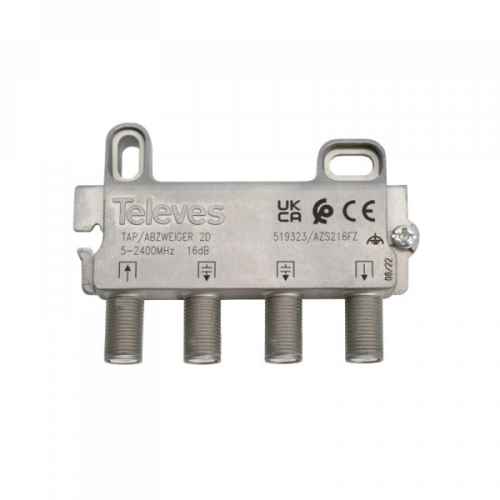

This Televes 519323 shunt with F connectors has 1 input, 2 shunt outputs with 16dB loss and 1 step output with 2/2.5 dB attenuation.
Due to its characteristics, it is classified as type A and is designed to be installed on the 2nd and 3rd floors of the building.
This tap works in both terrestrial and satellite broadcast frequency bands from 5MHz to 2400MHz.
It is very easy to install, since we can screw it to the wall, on a DIN rail (requires an adapter) or on rack plates with nuts. Its connectors allow easy threading of the cable, thanks to its longer threaded length.
Technical Specifications of the 2-way 16dB F Tap (Type A) 519323
Frequency range MHz 5 … 2400
Number of outputs ? 2
Inputs/Bands ?
TERR SAT
Through losses dB
2 2.5
Tap losses dB
16 15
Rejection between taps dB
> 20 > 20
Voltage max. Vdc 24
Max. current mA 350
DC pass ? In.?Out
