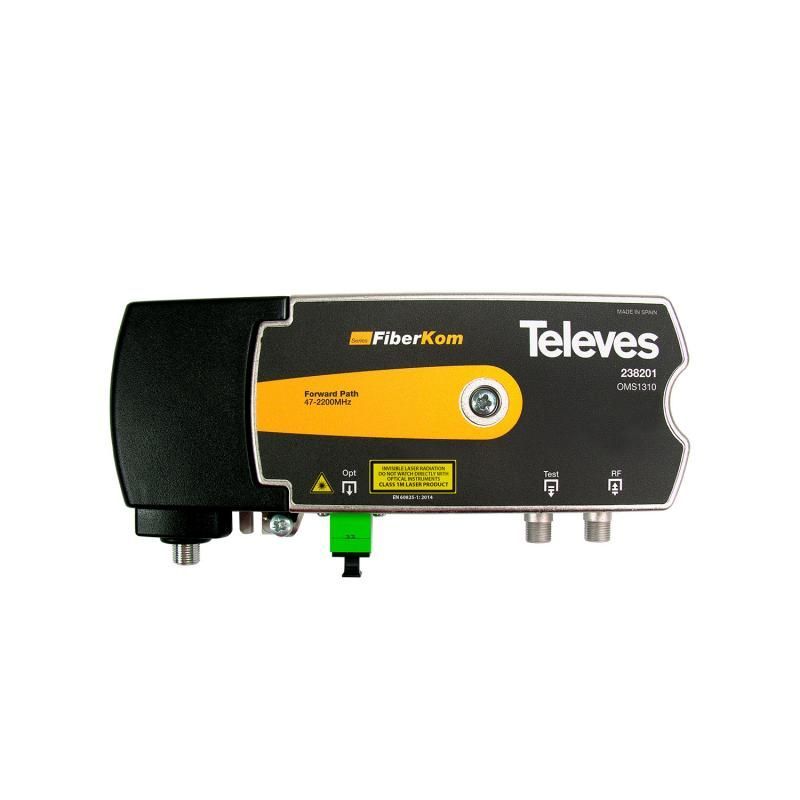

Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm…
KSh115,724.00
Optical fiber transmitter, which generates an optical output signal of 1310nm of wavelenght with an RF input. It is possible to obtain an optimal output signal working with low input levels (79 & 95 dB**V / 19 & 35 dBmV). The FiberKom design, which is made of Zamak, provide great robustness and shielding. This desing offers a wall assembly for separately installation also.
Optical fiber transmitter, which generates an optical output signal of 1310nm of wavelenght with an RF input. It is possible to obtain an optimal output signal working with low input levels (79 & 95 dB?V / 19 & 35 dBmV). The FiberKom design, which is made of Zamak, provide great robustness and shielding. This desing offers a wall assembly for separately installation also.
Features
Frequency range between 47 – 2200MHz, making possible the use for SMATV.
Plug-and-play installation.
OMI Test point.
Optical level indicator with green LED.
Coaxial power supply connector, with a maximum voltage of 35V.
?RF ?Frequency range MHz 47 … 2200
?Flatness (47 … 1200MHz) dB ? 0,75
?Flatness (950 … 2200MHz) dB ? 2,5
?Input level (47 … 1200MHz) dBmV / dB?V 19 / 79
?Input level (950 … 2200MHz) dBmV / dB?V 35 / 95
?CNR/CSO/CTB dB >51/>60/>65
?OMI Test point dBmV / dB?V 4 / 64
?OPTICAL ?Optical connector type SP / APC
?L?ser type MQW-DFB
?Wavelength nm 1310
?Output power dBm +3
?GENERAL ?RF connector type F-female
?Power supply connector type F-female
?Power supply voltage V / mA 11-35 / 120-40
?Operating temperature ?C / ?F -5 … +45 / +23 … +113
?Index operation IP 30
?Weight g 400
?Dimensions (xyz) mm 185x80x35
SPECIFICATIONS
