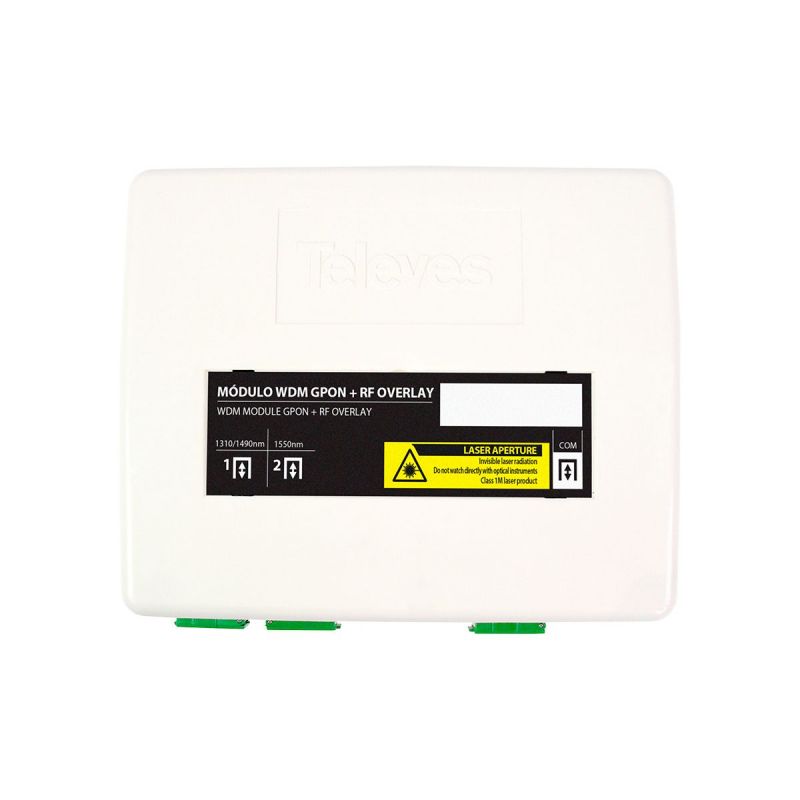

WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes
KSh17,190.00
This module allows multiplexing/demultiplexing of the different wavelengths: (Data 1310/1490nm & RF Overlay 1550nm), so its main function is to separate the lambdas before the ONT/ONU (Optical Network Terminal/Unit).**It also allows to mix the Data signal and the RF Overlay signal and deliver the two lambdas through a single fibre.
This module allows multiplexing/demultiplexing of the different wavelengths: (Data 1310/1490nm & RF Overlay 1550nm), so its main function is to separate the lambdas before the ONT/ONU (Optical Network Terminal/Unit).
It also allows to mix the Data signal and the RF Overlay signal and deliver the two lambdas through?a single fibre.
Features
Low return loss?thanks to APC polishing.
Easy installation thanks to the SC-connector.
Compact and resistant case (ABS?plastic) white colour (RAL 9003).
Wall?or?DIN-rail?mounting.
Specifications
Reference ? ?234740
?Wavelenghts Operating ?nm ?1260…1620
Transmission ?nm 1540…1565
Reflection ?nm 1270…1350 & 1475…1505
?Fibre type ?Single-Mode? (9/125)
?Connector type & fibre colour COM SC/APC (Black)
Trans. / Reflec. SC/APC (White)
?Insertion loss Trans. / Reflec. ?dB <0.5
?Return loss ?dB >50
?Max. Power supported dBm +25
?Working temperature ?C -5…+45
DATA SHEET
TECHNICAL MANUALS
