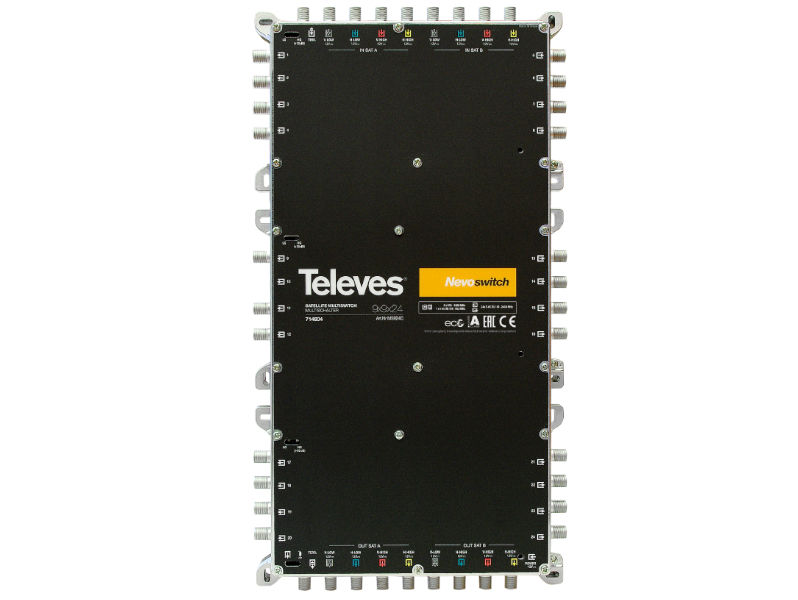

TELEVES Nevoswitch 9×24 CASCADE-TERMINATED
TELEVES
Nevoswitch 9×24 CASCADE-TERMINATED
9 In 24 Out c/w Output Earth Bar Only
2 Year Warranty
*Special Order! NCNR – Check Lead Time*
Multiswitch equipped with 9 inputs (one terrestrial and 8 for two satellites,
each with its four polarities) and 24 user outputs.
Can be used as a terminal (star topology) or as a cascade by using a simple
switch.
Features:
10 dB Low Gain (LG) / High Gain (HG) switch for the attenuation of the
satellite input signal for each 8-user group
Remote power feeding using VL
Current circulation between all inputs and cascades
Compatible with return-channel applications
Very compact
Made of zamak
Input and output colour identification
Available ECO mode
Selector switch to shift between cascade and terminal modes
12 V power supply
Low power consumption
