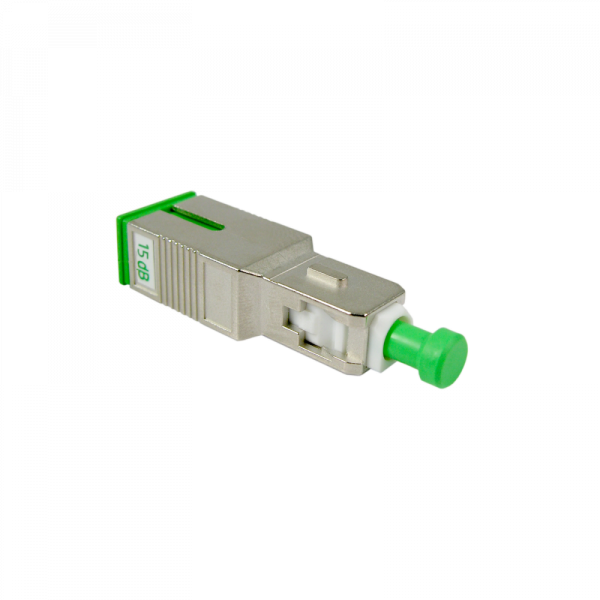

Televes SC/APC 1310/1550nm 15dB Optical Attenuator
Televes SC/APC 1310/1550nm 15dB Optical Attenuator
15dB optical attenuator at 1310/1550nm with SC/APC Male to Female connectors.
It is a fixed attenuator used to reduce the power of optical signals, this allows adjusting the optical input levels to the dynamic range of optical receivers.
Technical Specifications of the Televes SC/APC 1310/1550nm 15dB Optical Attenuator
Attenuation dB 15
Optical connectors ? SC/APC
Connection type ? Male/Female
Selectable wavelengths ? 1310 nm / 1550 nm
Return losses dB 65
Max. power mW 500
Max. power dBm 27
Attenuation tolerance dB 0.5
Operating temperature ?C -40 … 75
Colour ? Metallic
