Televes SmartKom Intelligent Indoor Amplifier

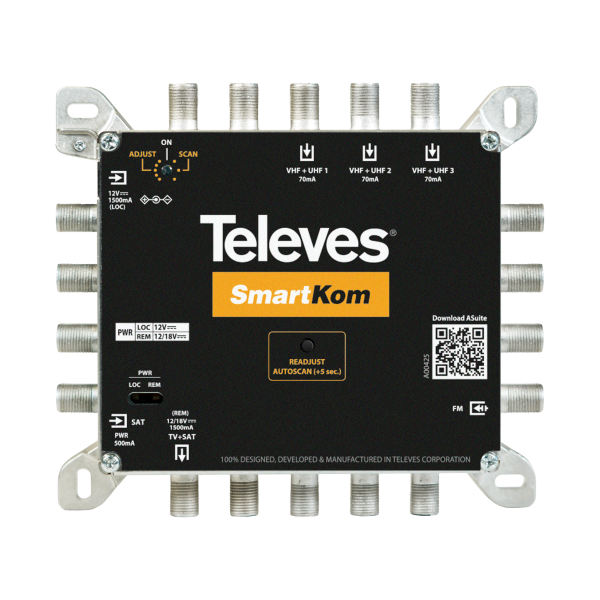

Televes SmartKom 531920 Smart Indoor Amplifier
This amplifier is interior, it is placed inside the house, at the head of the building. It can be powered remotely via the output connector (connected to a power supply or trunk distribution) or via an external power supply (eg with the 732101) connected via jack.
This amplifier can be programmed automatically with the push of a button, thanks to its auto-program function. It includes a Bluetooth antenna with which manual programming can be done from a phone or tablet by downloading the ASuite application.
This amp is 3 in 1: it amplifies, mixes and balances in a single press. The channels are assigned and adjusted automatically, it is also intelligent and is capable of activating the power of the antenna when it detects that the signal requires it.
Technical Specifications of the Televes SmartKom 531920 Smart Indoor Amplifier
?
Inputs/Bands 3x VHF+UHF FM SAT
Frequency range MHz 174-230/470-694 87,5-108 950-2150
Input dynamic range dB?V 40-80 – –
Maximum gain dB 45 -1 -2
Gain regulation dB CAG – –
Number of filters 32 – –
Channels per filter 1 – –
Channel/filter programming 5-12 (VHF)
21-48 (UHF) – –
Filtered channel level regulation AGC per filter – –
Selectivity dB 28/12 @1MHz* >20 @20MHz >40 (@87-694MHz)
Output level dB?V 82 (VHF)
85 (UHF) – –
Vout regulation dB?V 57-82 (VHF)
60-85 (UHF) – –
Manual regulation dB ?3 – –
Noise figure dB 7 (VHF)
6 (UHF) – –
Powering inputs Vdc 12 (AUTO/ON/OFF) – 12
Max. consumption inputs mA 70 – 500
Max. consumption mA 500 (@12V w/o DC IN)
Protection index IP 23
Operating temperature ?C -5 … +45
