Main register closed for data or coaxial 546601 of Televes
Main Registry 546601 of Televes

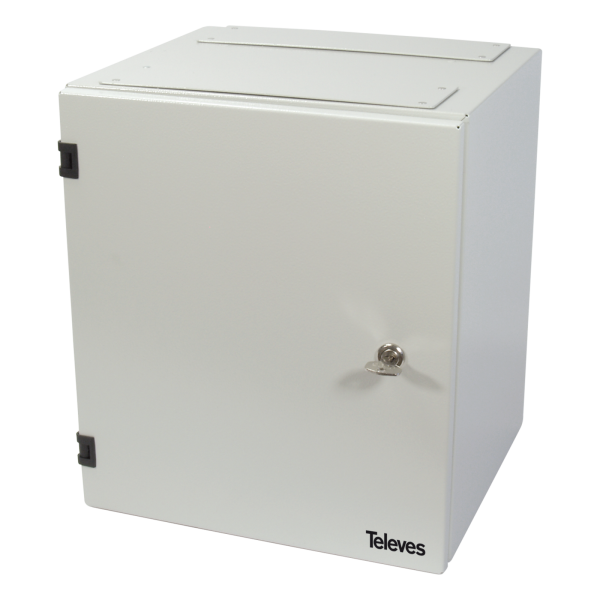

Televes main register 546601 is designed to act as a distribution point for coaxial and data cables (typical installation in the RITI).
It has 2 upper and lower accesses and 2 connection panels inside, allowing the insertion of both RJ45 female connectors for data, as female “F” adapters – “F” female for coaxial.
It has upper and lower openings with removable / sliding covers, which allow to adjust the passage of the cables.
The main register 546601 is designed to act as a data and coaxial distribution point.
What technical characteristics does registration 546601 have?
Rugged: built in steel
Security: closing by key
Upper and lower openings with removable / sliding covers that allow to adjust the passage of the cables
Manufacturing in Europe
Lacquered in gray color (RAL 7035)
Top and bottom accesses of 185×50 mm each
It has 2 supports inside, up to 24 connections each
Dimensions: 300x340x265 mm
Includes hardware for wall anchor and ground cable
What technical specifications does registry 546601 have?
Door with lock.
Material: Painted steel
Color: Light gray (RAL 7035).
Attach screws / washers and screws for wall installation (interior)
Dimensions: 300 x 340 x 265 mm
