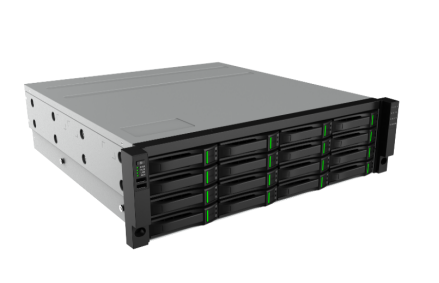

Tiandy 16HDD 80ch NVR

Product
Description
Video and Audio

Access Channel 80
Incoming Bandwidth 640Mbps
Outgoing Bandwidth 320Mbps

Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6,
6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×24,
720P(30fps)×48, 4CIF(30fps)×80
Playback Decoding Capability 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8,
5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16,
4CIF(30fps)×16
Third-party Camera Access ONVIF(Profile S/T); RTSP
HDMI Output HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz),
1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz),
2560×1440(30Hz/60Hz), 2560×1600(60Hz),(
68595040,4K)3840×2160(30Hz/60Hz)
VGA Output VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz),
1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display Independent Output:
HDMI1/VGA1: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
HDMI2/VGA2: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
Audio Input 1-ch, 3.5mm
Audio Output 1-ch, 3.5mm; BNC
Two-Way Audio 1-ch, 3.5mm, using the audio input
Compression Standard

Video Compression S+265; H.265; S+264; H.264
Audio Compression G.711A; G.711U; AAC; ADPCM_D
Stream Type Video; Video & Audio
Network

Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS;
ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP;
SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast;
UPnP
Mobile Client EasyLive Plus (Android, iOS)
System Compatibility ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording Playback

Multi-channel Playback 16
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD, eSATA
Backup USB storage device, eSATA, Network
Playback Function Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards
30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay
Dual Stream Record Yes
Alarm

General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm
Input(NVR)
Exceptions Alarm Video Loss; Network Disconnected; No Disk; Illegal Access;
Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal;
Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare
Exception; Array Exception; Voltage Alarm(IPC); RTC Failure; IP Address
Conflict; MAC Address Conflict; Disk Overload
Intelligent Analytics

AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object
Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio
Abnormal; License Plate Recognition; On Duty Detection; Crowd Detection;
Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to
Tracking; Smoke and Fire Detection; Environmental Temperature Measurement;
Face Detection; Human Body Temperature Measurement; Smart Alarm; Face
Recognition; Human/Vehicle Classification
VCA Search Early-warning Search; Behavior Search; License Plate Search;
Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle
Retrieval; Face Search(Search by face attributes/event)
VCA Report Heatmap; People Counting; Face Statistics
Face Detection

Face Attributes Search Gender; Age; Glasses; Face Mask; Body Temp.
Face Recognition

Face Picture Library Up to 300 face libraries
Up to 100000 base images
Face Picture Comparison Yes (Cooperate with facial recognition IPC)
Storage

HDD Capacity Up to 24 TB capacity for each HDD
Disk Group 8 Disk Group
RAID JBOD, RAID0, RAID1, RAID5, RAID6, RAID10 (To enable RAID, please use
surveillance-grade AI disks or enterprise-class disks.)
Hot Swapping Yes
External Port

eSATA 1×eSATA
USB 2×USB2.0; 1×USB3.0
HDMI 2×HDMI(supports up to 4K resolution output)
VGA 2×VGA
Network Interface 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet
port
SATA 16×SATA interface
RS-232 1×RS-232
RS-485 2×RS-485
Alarm I/O 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A,
24VDC
General

UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean;
Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic;
Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek
Power Supply 100~240V AC; Redundant Power Supply
Power Consumption <25W(HDD not included, idling)
NetWeight 13.9Kg
GrossWeight 20Kg
Boundary Dimensions 549(L)485(W)132(H)mm
Package Dimensions 685(L)630(W)290(H)mm
Operating Temperature -10?~+55? (+14?~+131?)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20?~+60? (-4?~+140?)
Package Kit Network Video Recorder*1; Screw Pack*1; Mouse*1; European
Standard Power Cord*2; Instructions*1; Parts List*1
