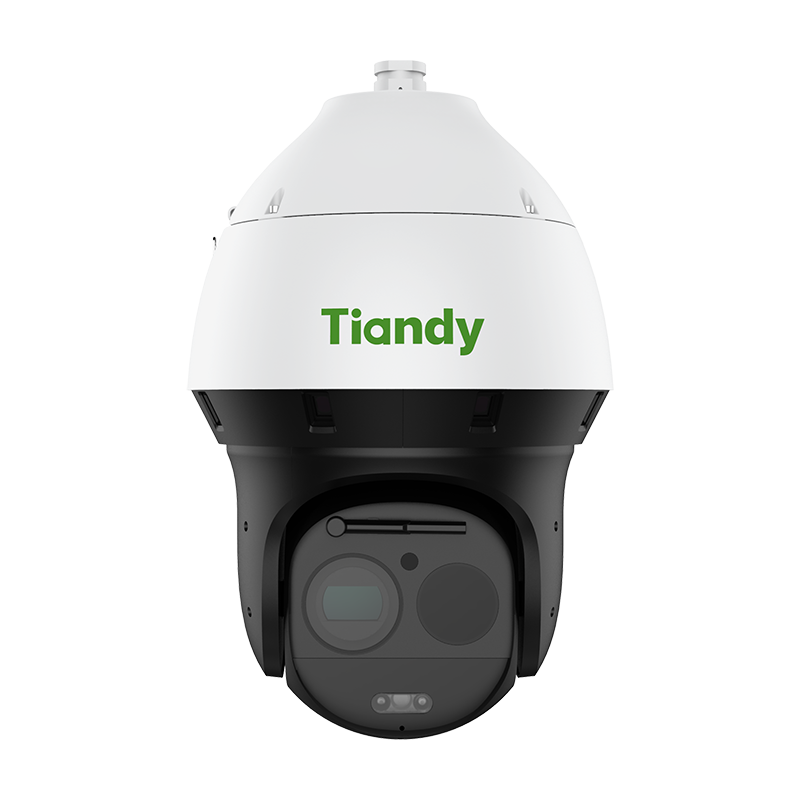

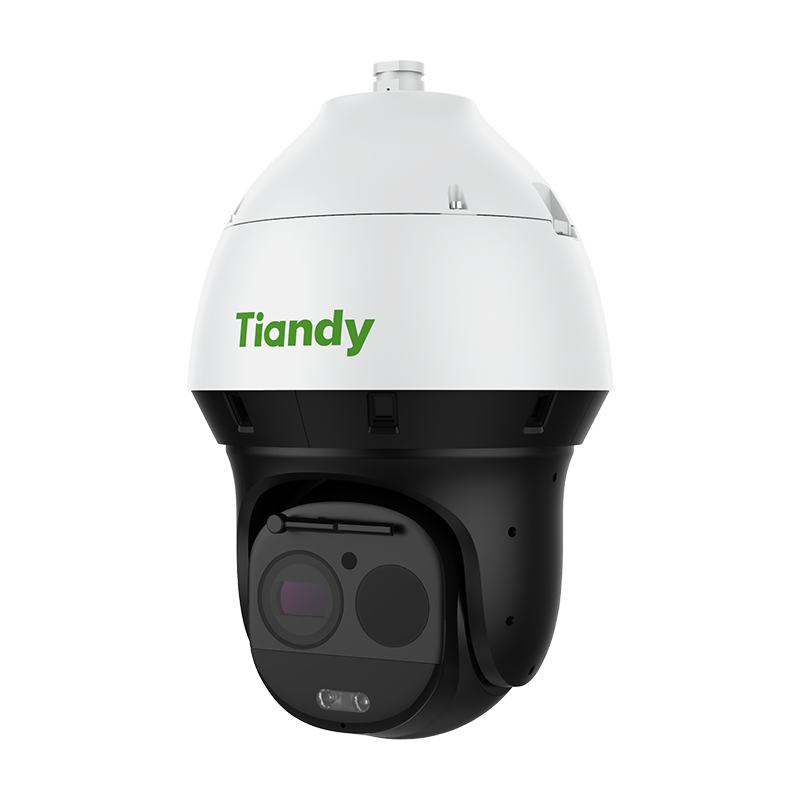

Tiandy 16MP 63X Polar Day Panoramic AEW PTZ Camera

Product
Description

Camera



Image   Sensor

Panorama:1/1.8″CMOS
  Detail:1/1.8″CMOS

Min.   Illumination

Panorama:0.0004lux
  Detail:0.001lux

Shutter   Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart   IR

Yes

WDR

Panorama:DWDR
  Detail:120dB

Lens



Focal   Length

Panorama:2.8mm
  Detail:5.7mm?359mm

Optical   Zoom

Detail:63X

Digital   Zoom

Detail:16X

Zoom   Speed

Detail:<8s

Aperture   Range

Panorama:F1.0
  Detail:F1.63~F4.94

Aperture   Type

Panorama:Fixed
  Detail:Auto(P-Iris)

Field   of View

Panorama:180°±10°(H);90°±10°(V)
  Detail:60°~1.5°(H); 35.5°~0.87°(V); 67.5°~1.77°(D)

Focus   Control

Detail:Auto/Semi-auto/Manual

Close   Focus Distance

Panorama:200mm
  Detail:1000mm~3000mm

DORI   Distance

Panorama:   Detect:63m; Observe:25m; Recognize:12m; Identify:6m
  Detail: Detect:3800m; Observe:1508m; Recognize:760m;
Identify:380m

Pan&Tilt



Pan   Range

Detail:   0°~360°

Pan   Speed

Detail:   Manual Speed:0.1°?200°/s; Preset Speed:240°/s

Tilt   Range

Detail:-21°~90° (Default -13°~90°)

Tilt   Speed

Detail:   Manual Speed:0.1°?120°/s; Preset:180°/s

3D   Position

Yes

Preset

500

Cruise

16,up   to 32 presets per cruise

Scan

8

Pattern

8,each   with 600s memory or 1000 orders

Scheduled   Task

Preset,Cruise,Scan,Pattern

North   Point

Yes

Power-off   Memory

Yes

Preset   Freezing

Yes

Illuminator



IR   LEDs

Detail:11

IR   Distance

Detail:300m

Wavelength

Detail:850nm

IR   Irradiation Angle

Detail:Yes

White   LEDs

Detail:2

Whitelight   Distance

Detail:30m

Red   and Blue Alarm Flash

Yes

Laser   Distance

Detail:500m

Compression   Standard



Video   Compression

Panorama:S+265/H.265/H.264B/H.264M/H.264H/Motion   JPEG
Detail:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video   Bit Rate

Panorama:32Kbps~16Mbps   Detail:32Kbps~16Mbps

Audio   Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio   Sampling Rate

8KHz/32KHz/48KHz




Max.   Resolution

Panorama:5520×2400@30fps
  Detail:2560×1440@30fps

Main   Stream

Panorama:   PAL:25fps(5520×2400,4096×1800,3840×1680,2784×1200)
NTSC:30fps(5520×2400,4096×1800,3840×1680,2784×1200)
  Detail: PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)

Sub   Stream

Panorama:   PAL:25fps(2048×896,1280×560,704×320)
NTSC:30fps(2048×896,1280×560,704×320)
  Detail: PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fp(704×480,704×240,352×240,640×360)

Third   Stream

Panorama:   PAL:25fps(1280×560) NTSC:30fps(1280×560)
  Detail: PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:30fps(704×480,704×240,352×240,640×480)

BLC

Yes

HLC

Yes

AGC

Yes

3DNR

Yes

White   Balance

Auto/Semi-Auto/Manual/Sunshine/Nature   Light/Warmlight Lamp/Daylight
Lamp/Filament Lamp/Lock White Balance

ROI

Panorama:   7 Fixed Areas for Both Main and Sub Stream Detail 7
rectangular 3D fixed   focus areas,supporting 1 rectangular dynamic
tracking ROI

EIS

Panorama:N/A   Detail:Yes

OSD

5   regions(Each region can have a maximum of 127 characters,up to 5
lines);
  Panorama: 16*16/24*24/32*32/48*48/64*64/72*72/96*96/128*128/adaptable
size   Detail: 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size

Defog

Yes

Flip

Panorama:Normal
  Detail:Normal/Inverted Flip

Regional   Exposure

Detail:Yes

Regional   Focus

Detail:Yes

Demist

Yes

Privacy   Mask

Panorama:8   regions
  Detail:24 regions

Feature



General   Alarm

Panorama:Motion   Detection
  Detail:Motion Detection;Mask Alarm; Alarm Input

Exceptions   Alarm

Disk   Full; Disk R/W Error; Recording Exception; IP Address Conflict;
MAC Address   Conflict; FTP Server Exception ; Network cable
disconnected

Linkage   Method

Send   Email; Trigger Sound; trigger warmlight; Trigger Recording;
Trigger Capture;   Notify Surveillance Center; Alarm Output

Video   Analytics

Panorama:Tripwire,   Double Tripwire,Heatmap, Human/Vehicle
Classification
  Detail: Tripwire, Double Tripwire, Perimeter, Object  Abandon,
Object Missing, Loitering,   Running, Parking,
  Crowed Detection, People Counting, Safety Helmet Detection, On Duty
  Detection, Video Abnormal, Audio Abnormal, Human/Vehicle
Classification

Auto   Early Warning(AEW)

Yes

Auto-Tracking

Yes

Face   Mode

Face   Capture

Face   Capture Performance

Detect   up to 32 faces at the same scene; Capture up to 16 faces at
the same scene

Network



ANR

Yes

Protocols

HTTP;   HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1; DHCP; DNS;
DDNS; Easy DDNS;   NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6;
PPPoE; Unicast; Multicast;   ARP; RTP; SRTP; FTP; SFTP

System   Compatibility

ONVIF(Profile S/T/G/M);   SDK; CGI; RTSP; RTMP

Remote   Connection

?7

User/Host

Up   to 32 users. 4 user levels

Client

Easy7   VMS

Web

IE10+;   Firefox52+; Edge89+; Safari11+; Chrome57+

Interface



Communication   Interface

1*RJ45   (10/100Base-T)

Audio   I/O

1*Input; 1*Output

Alarm   I/O

8*Switching;   2*Switching,Voltage?DC24V,Current?1A

Built-in   Speaker

Yes

Reset   Button

Yes

On-board   Storage

Built-in   Micro SD card slot,up to 512 GB

Additional   Interfaces

RS485;   BNC

Wiper

Yes

Electronic   Compass

Yes

General



Web   Client Language

17   languages
  Simple Chinese/English/Traditional Chinese/Spanish/Italian/
Korean/Turkish/Russian/Thai/ Polish/French/Dutch/
Hebraism/Vietnamese/Arabic/German/Ukrainian

Operating   Temperature

-40?~70?(-40?~158?)

Operating   Humidity

?95%RH

Storage   Temperature

-40?~70?(-40?~158?)

Storage   Humidity

10%~95%RH(non-condensing)

Power   Supply

DC36V±25%

Power   Consumption

50W(IR   OFF) ; 76W(IR ON)

Protection

Surge4000V;   ESD6000V; IP66

Material

Metal

Boundary   Dimensions

358mm(D)x568mm(H)

Package   Dimensions

565(L)485(W)750(H)mm

GrossWeight

21.7kg

NetWeight

14.8kg
