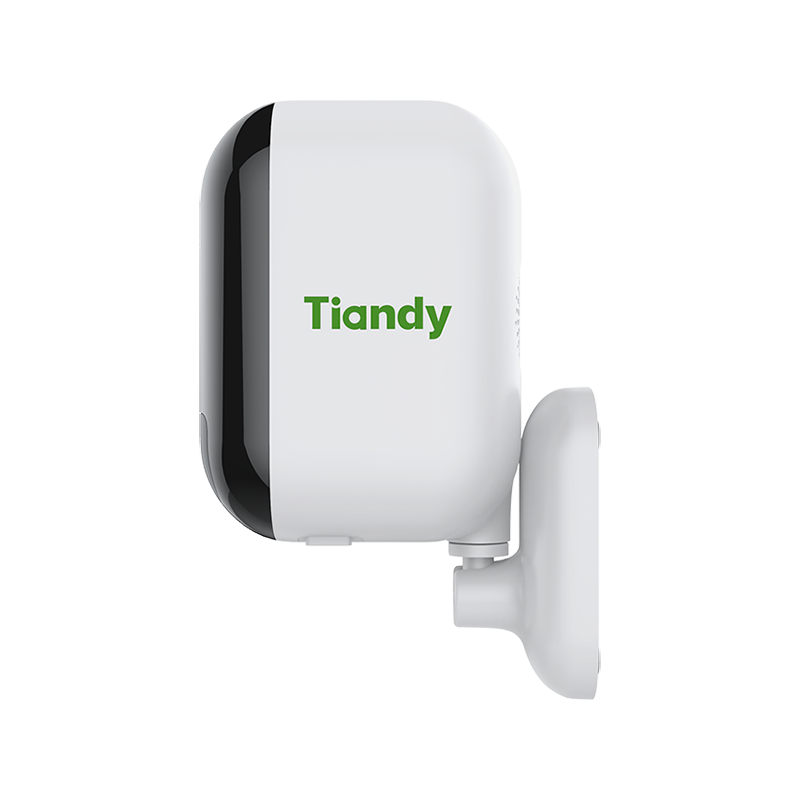

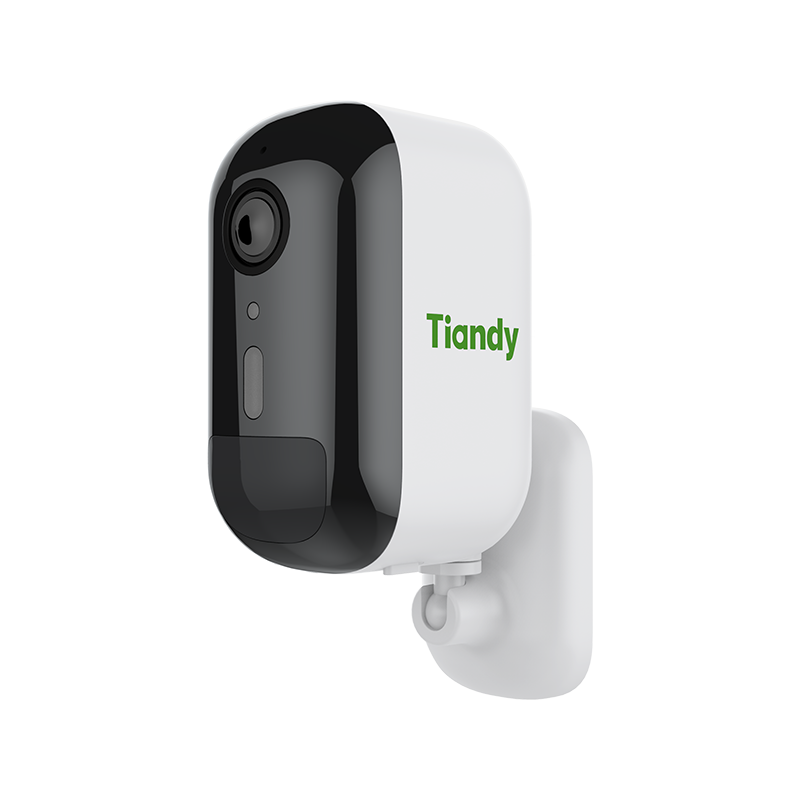

Tiandy 2MP Fixed Color Maker Wi-Fi Bullet Camera

Product
Description

Camera

Image Sensor

1/2.9″CMOS

Min. Illumination

Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart IR

Yes

WDR

120dB

S/N

>50dB

Angle Adjustment

0~360°(P); 0~75°(T); 0~360°(R)

Lens

Lens Type

Fixed focal lens

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F1.6

Aperture Type

Fixed

Field of View

103.8°(H); 56.8°(V); 120.4°(D)

DORI Distance

Detect:40.0m Observe:15.87m Recognize:8.0m Identify:4.0m

Illuminator

IR LEDs

2

IR Distance

Up to 30m

Wavelength

850nm

White LEDs

2

Whitelight Distance

15m

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

32k~4Mbps

Audio Compression

G.711A/G.711U

Audio Sampling Rate

8kHz/16kHz


Max. Resolution

2MP,1920×1080@25fps

Main Stream

PAL:20fps(1920×1080) NTSC:20fps(1920×1080)

Sub Stream

PAL:20fps(704×576) NTSC:20fps(704×480)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto

OSD

Overlay of additional characters in 5 regions, 2 lines, with a maximum of
127 characters or 42 Chinese characters per region; 16*16/32*32/48*48

Feature

Exceptions Alarm

Disk Full; Disk R/W Error

Linkage Method

Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture

Video Analytics

Smart Alarm

Network

Protocols

TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast

System Compatibility

SDK

Remote Connection

?2

Moblie Client

EasyLive Plus

Wi-Fi

Transmission Distance

Up tp 50m( based on actual environment)

Wireless Standard

IEEE802.11b/ 802.11g/802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

20/40MHz

Wi-Fi Security

WPA-PSK/WPA2-PSK

Interface

Built-in Mic

Yes

Built-in Speaker

Yes

Reset Button

Yes

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 256GB

General

Operating Temperature

-10?~50?(14?~122?)

Operating Humidity

?95%RH

Storage Temperature

-10?~50?(14?~122?)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC5V/2A

Protection

Surge500V; ESD6000V; IP65

Boundary Dimensions

78(L)44W)73(H)mm

Package Dimensions

146(L)83(W)108(H)mm

GrossWeight

0.38kg
