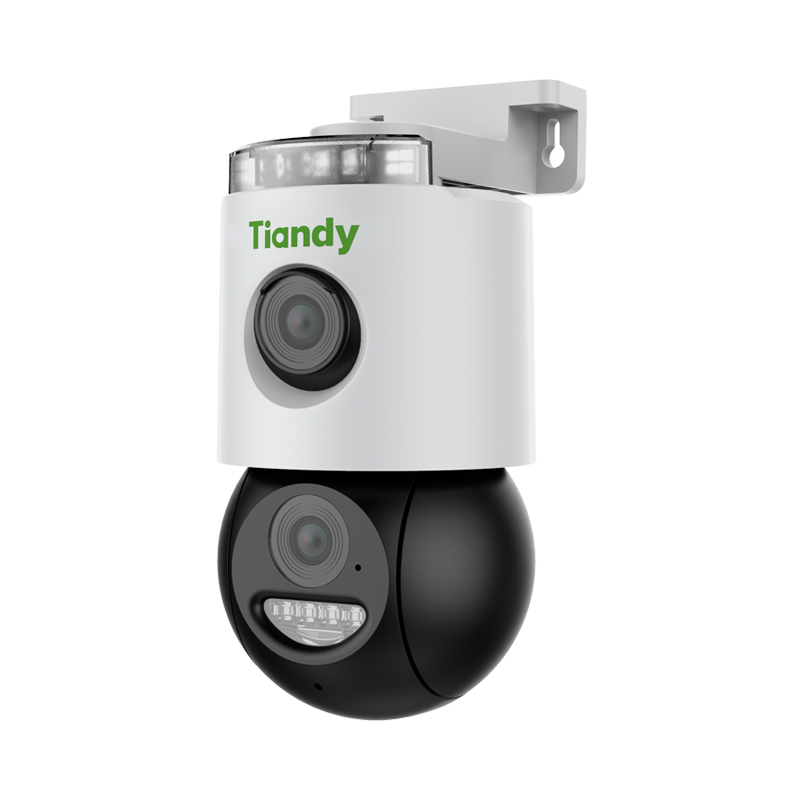

Tiandy 6MP Fixed Color Maker Wi-Fi PT Camera

Product
Description

Camera

Image Sensor

1/3″CMOS

Min. Illumination

Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart IR

Yes

WDR

DWDR

S/N

>40dB

Angle Adjustment

Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:-15~90°

Lens

Lens Type

Fixed focal lens

Focal Length

4mm

Lens Mount

M12

Aperture Range

F1.6

Aperture Type

Fixed

Field of View

Panorama:81.3°(H); Detail:81.3°(H); Panorama:44.4°(V); Detail:44.4°(V);
Panorama:94.4°(D); Detail:94.4°(D)

DORI Distance

Detect:59.26m Observe:23.52m Recognize:11.85m Identify:5.93m

Pan&Tilt

Pan Speed

30°/s

Tilt Speed

25°/s

Preset

255

Illuminator

IR LEDs

Panorama:4 Detail:4

IR Distance

Up to 50m

Wavelength

850nm

White LEDs

Panorama:4 Detail:4

Whitelight Distance

15m

Red and Blue Alarm Flash

Yes

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

32k~4Mbps

Audio Compression

G.711A/G.711U

Audio Sampling Rate

8kHz/16kHz


Max. Resolution

Panorama:3MP,2304×1296@15fps Detail:3MP,2304×1296@15fps

Main Stream

Panorama: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296,
1920×1080, 1280×720, 704×576, 640×480) Detail: PAL:15fps(2304×1296,
1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296, 1920×1080,
1280×720, 704×576, 640×480)

Sub Stream

Panorama: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480,
704×240, 640×360, 352×240) Detail: PAL:15fps(704×576, 704×288, 640×360,
352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight
Lamp/Filament Lamp/Lock White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48
characters or 16 Chinese characters per region; 16*16/32*32/48*48

Privacy Mask

4 black static areas

Defog

Yes

Feature

Exceptions Alarm

Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict

Linkage Method

Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance
Center

Video Analytics

Smart Alarm

Auto-Tracking

Yes

Network

ANR

Yes

Protocols

HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast;
FTP

System Compatibility

SDK; CGI

Remote Connection

?2

Client

Easy7 VMS

Moblie Client

EasyLive Plus

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Wi-Fi

Transmission Distance

Up tp 50m( based on actual environment)

Wireless Standard

IEEE802.11b/ 802.11g/802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

20/40MHz

Wi-Fi Security

WPA-PSK/WPA2-PSK

Interface

Communication Interface

1*RJ-45 (10/100 Base-T)

Built-in Mic

Yes

Built-in Speaker

Yes

Reset Button

Yes

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 512GB

General

Web Client Language

3 languages Simple Chinese/English/Vietnamese

Operating Temperature

-30?~60?(-22?~140?)

Operating Humidity

?95%RH

Storage Temperature

-30?~60?(-22?~140?)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC12V±25%,Max. 13W

Protection

Surge4000V; ESD6000V; IP66

Boundary Dimensions

133(L)102(W)209(H)mm

Package Dimensions

160(L)160(W)215(H)mm

GrossWeight

0.83kg
